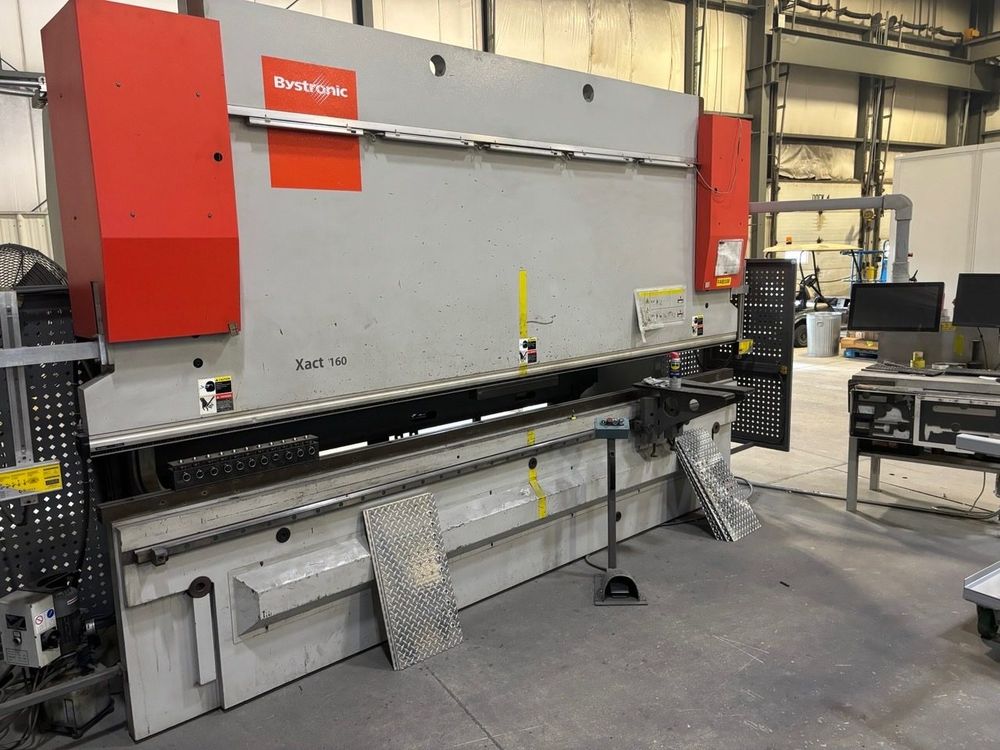

Bystronic XACT 160 176 Ton

Press force 176 Ton
Working length 122"
Standard stroke 7.9"
Maximum stroke 11.81"
Open height 18.9"
Distance between side frames 96.5"
Throat depth 15.8"
Rapid approach speed 425 in/min
Working speed 1–13 mm/s
Return speed 425 in/min
X-axis travel 23.6"
X-axis speed 1417.3 in/min
X-axis position accuracy 0.002"
R-axis travel 5.9"
R-axis speed 472.4 in/min
R-axis position accuracy 0.002"
Z-axis travel 72"
Z-axis speed 2362.2 in/min
Y-axis maximum approach speed 330.7 in/min
Y-axis maximum working speed 23.6 in/min
Y-axis position accuracy 0.0004"
Main motor power 18.5 kW
Total connected load 30 kW
Operating voltage 3PH 480V
Frequency 60 Hz
Control voltage 24V DC
Nominal current fuse 63A
Machine length 154"
Machine width 74"
Machine height 107"
Machine weight 25,353 lbs
Crowning
Upgraded Bystronic controller with 3D simulation
Top tooling Wila standard
Bottom tooling American tang
Punches included: 1/16" radius straight, 1/8" radius gooseneck, 1/4" radius straight
Bottom dies included: 5/8" V opening, 1" V opening, 1-1/4" V opening
