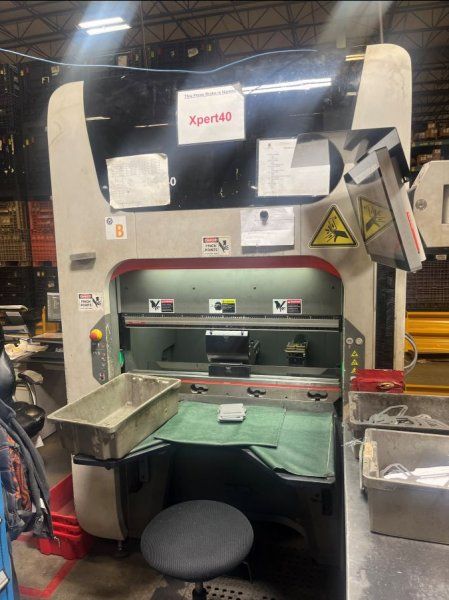

Bystronic XPERT 40/1030 44 US Tons (40 Metric Tons)

Tonnage: 44 US Tons (40 Metric Tons)
Bending Length: 40.55" (1030 mm)
Standard Stroke: 7.85" (200 mm)
Open Height: 20.25" (515 mm)
Distance Between Side Frames: 41.7" (1060 mm)
Table Width: 2.35" (60 mm)
Max. Backgauge Range X-Axis: 21.65" (550 mm)
X-Axis Travel: 11.8" (300 mm)
X-Axis Speed: 3543 in/min (1500 mm/s)
R-Axis Travel: 3.9" (100 mm)
R-Axis Speed: 1181 in/min (500 mm/s)
Z-Axis Travel: 37.6" (955 mm)
Z-Axis Speed: 4724 in/min (2000 mm/s)
Max. Y Approach Speed: 708.65 in/min (300 mm/s)
Max. Y Working Speed: 59 in/min (25 mm/s)
Y-Position Accuracy: 0.0004" (0.01016 mm)
Oil Capacity: 26.41 Gal (120 L)
Weight: 8820 lbs (4000 kg)
Power of Main Motor: 9 kW
Total Connected Load: 16 kW
Operating Voltage: 3 Ph 480V
Frequency: 60 Hz
Control Voltage: 24 V
Nominal Current Fuse: 32 A
