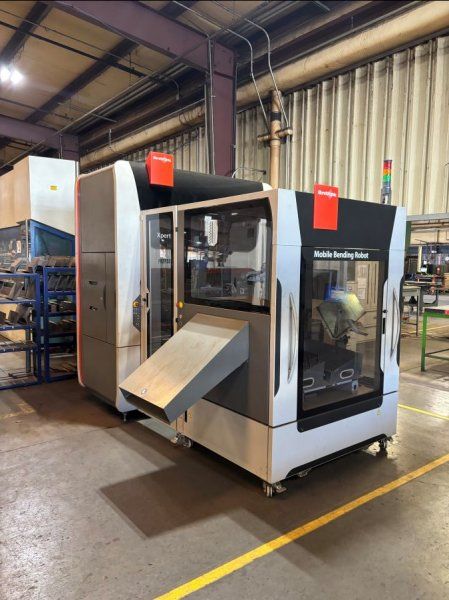

Bystronic XPERT 80/1530

BYSTRONIC XPERT 80/1530
MOBILE BENDING ROBOT 88 TON
INSTALLED:2020

Tonnage: 88 US Tons (80 Metric Tons)
Bending Length: 60.2" (1530 mm)
Standard Stroke: 7.9" (200 mm)
Open Height: 20.3" (515 mm)
Distance Between Side Frames: 61.8" (1570 mm)
Table Width: 2.4" (60 mm)
Max. Backgauge Range X-Axis: 19.7" (500 mm)
X-Axis Travel: 11.8" (300 mm)
X-Axis Speed: 3543 in/min (1500 mm/s)
R-Axis Travel: 3.9" (100 mm)
R-Axis Speed: 1181 in/min (500 mm/s)
Z-Axis Travel: 57.3" (1455 mm)
Z-Axis Speed: 4724 in/min (2000 mm/s)
Max. Y Approach Speed: 591 in /min (300 mm/s)
Max. Y Working Speed: 59 in/min (25 mm/s)
Y-Position Accuracy: 0.00016" (0.004 mm)
Oil Capacity: 53 Gal (200 L)
Electric Supply: 15 kW

Press Brake Dimensions
Length: 80" (2,030 mm)
Width: 67" (1,700 mm)
Height: 105" (2,659 mm)
Weight: 14330 lbs (6.5 Metric Ton)

Additional Information
Accepts Wila New Standard style tooling


Mobile Bending Robot (Xpert 80)
Max. Load: 22 lbs
Max. Part Size (approx.): 11.8" x 23.6"
Max. Part Weight (approx.) 15 lbs
Air Supply: 73-100 psi
Weight: 1.1 US Tons

Mobile Bending Robot Dimensions
Length: 59.8" (1520 mm)
Width: 47.3" (1200 mm)
Height: 82.3" (2090 mm)
Weight: 2200 lbs (1.0 Ton)
