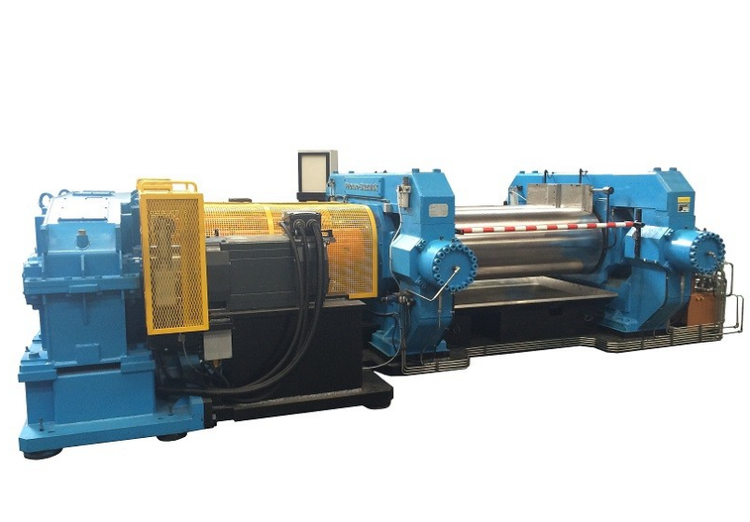

C2 Pluridrive 700x1800

Make: C2
Condition: used, completely overhauled;
with warranty

Specification: Pluridrive rolling mill 700 x 1800 mm
- motor on the side of the rolls
- roll diameter approx.: 700 mm
- roll length approx.: 1800 mm
- peripherally drilled rolls for water cooling
- variable friction ratio between the rolls
- hydraulic gap adjustment: new
- hydraulic unit: new
- tilting guide plates made of steel
- rolls on bronze bearing bushes with oil circulation lubrication via pump
- rolls with new ball bearing slewing rings for connection
to the water circuit
- two AC main motors IE 3: 2x 132 kW - 400 V - 50 Hz
- new main gearbox from Motomeccanica
- 2x new cardan shafts for power transmission from the
gearbox to the rolls
- 4 pneumatic safety brakes for EMERGENCY STOP
- stainless steel roll container for containing the mixture
- bi-directional safety bars
- 2x new inverter system for variable speed of each
individual roll
- new remote maintenance device
- New electrical control cabinet with PLC, Siemens S7-1200
- New control panel with touch panel Siemens KTP 700 Basic
for machine parameters
- Machine cabling: new
- Power cable approx. 5m from control cabinet to machine
- Emergency system and memory:
- Painting according to customer requirements
- Safety devices according to the current standard
EN 1417:3/2023
- EC certificate and operating and maintenance manual
(CE manual in English or German)
- Electrical circuit diagram
- with 12 months warranty

Additionally for an additional charge:
- Stock blender - overhauled
mounted on the machine for homogenizing the
rubber mixtures
- Two new, adjustable pneumatic strip cutting knives, with
two-hand safety control, for one rubber strip
