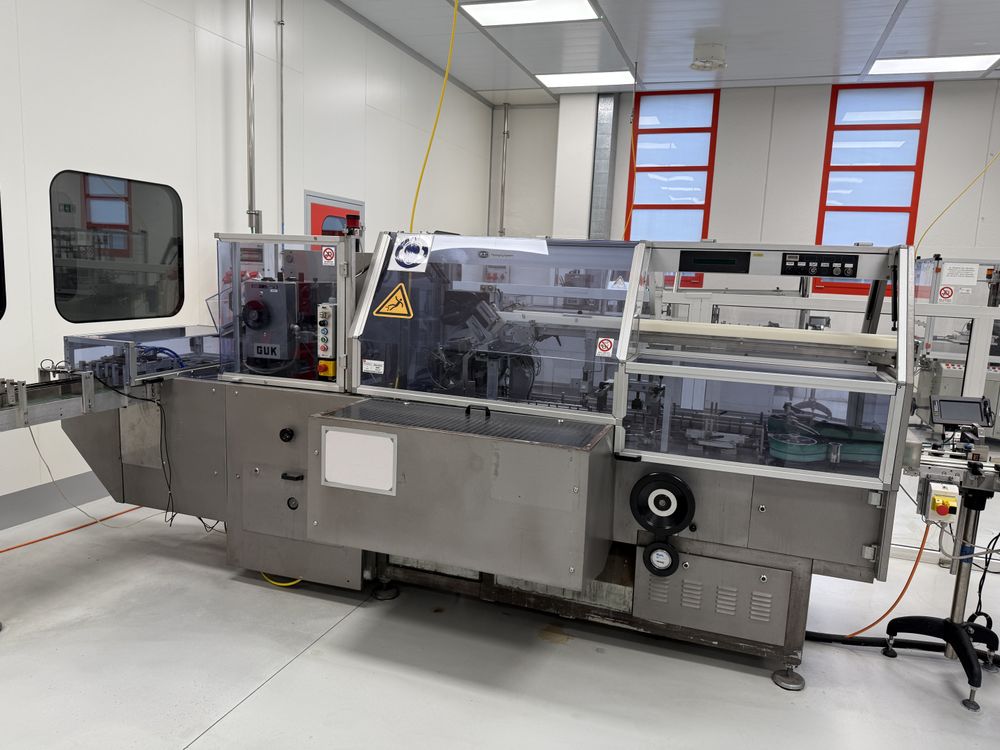

Cam HF, Automatic Tube Cartoner

Equipment overview:
High-performance cartoner with continuous motion.
The formats are fully adjustable.
With simple operations and the replacement of a few parts
it is possible to use cases with even or alternate fins,
with sizes within the following limits:
Width: 20-70 mm
Height: 12-70 mm
Length: 55-200 mm
The maintenance of the equipment is very simple and above all easy to use.
The cams are of the channel type machined from a single block,
the mechanical shafts are installed on ball bearings.
Machine weight: 2200 kg.
Equipment dimensions: 3680 x 1660 x 1570 mm
Cartoning speed:
Cartoner HF 77 from 50 to 250 cartons per minute.
