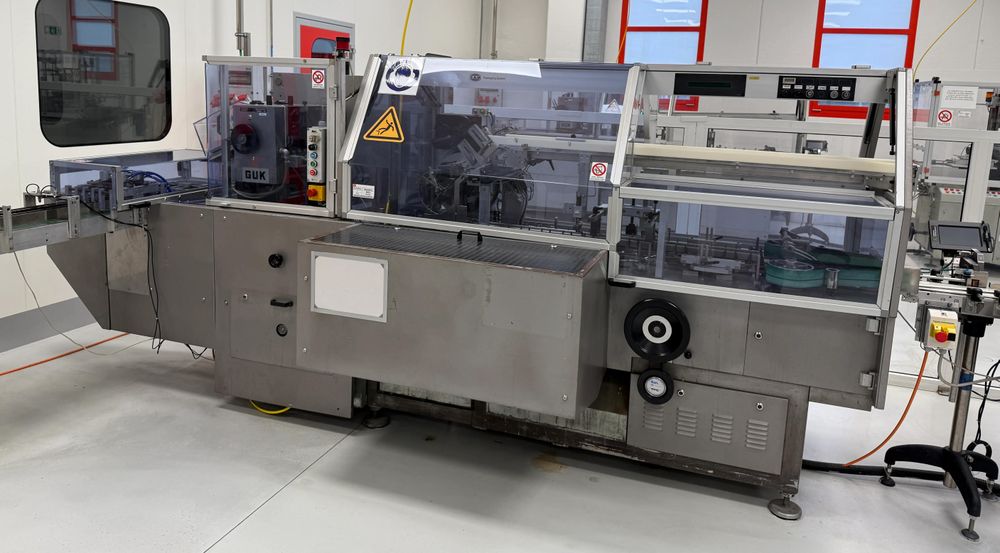

Cam HF77, Cartoning Machine

MACHINE CHARACTERISTICS
cams of channel type, machined from a single block
mechanical shafts installed on ball bearings
equipped with electrical and mechanical safety devices, which intervene in the event of a malfunction interrupting the regular work cycle
if an illustrative brochure is required in the case, the sensor that activates the case gripping also sends an impulse to the brochure magazine. The brochure is gripped by suction cups and inserted into a series of belts, and transported to a gripper that is located below the product supply chain

PRODUCTION CHARACTERISTICS
Cases sizes
Width: 20-70 mm
Height: 12-70 mm
Length: 55-200 mm
Usable cases: with even or alternate fins
Cartoning speed: from 50 to 250 cartons/minute

SIZE
Dimensions: 3,680 x 1,660 x 1,570 mm
Weight: 2,200 kg
