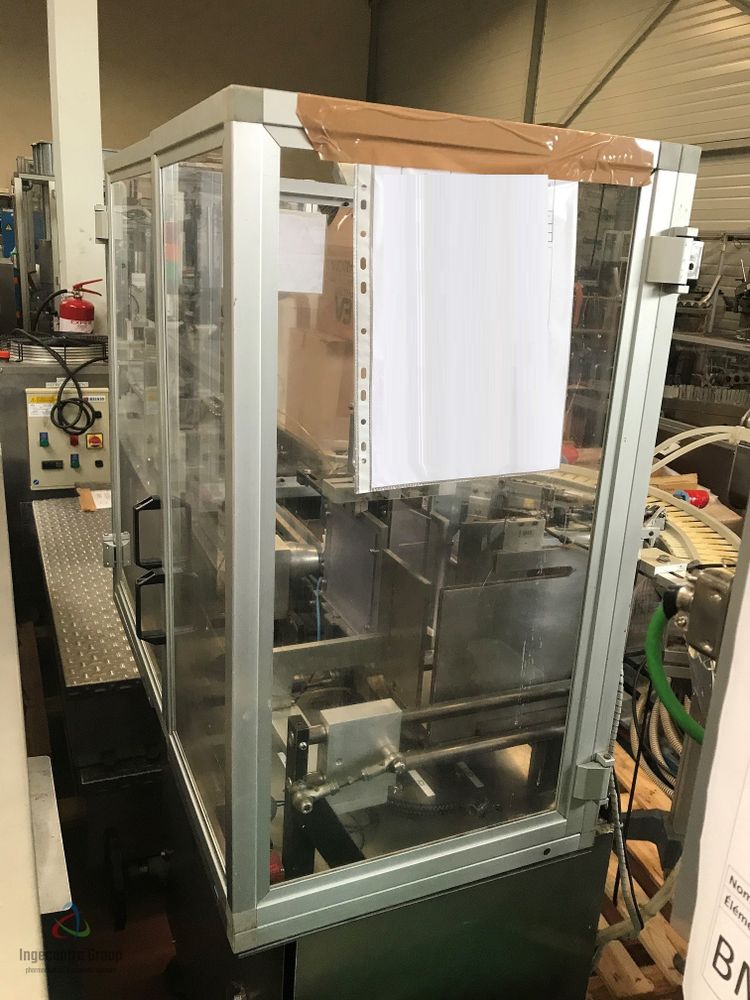

Cam NCK, Case Packer

Use: packing stackings of racks (by 5 or 10)
Two modules: grouper of racks and case packing
Speed: max 12 boxes/minute

Format range:
A: 100 – 300 mm
B: 30 – 130 mm
C: 100 – 260 mm
A + B maxi: 430 mm

Installed format:
Rack 220 x 90 mm

Description of functioning:
A – Grouper of racks of ampoules
Reception of the racks on the conveyor
Stacking x racks
Transfer of the pile of racks towards the case packer

B – Case packer for racks
Shaping “specific” cases, upside down. See plan in annex.
Turning cases, with holding system at opening
Loading the racks into the cases
Closing the cases, by glueing device
Outfeed of the closed cases.

Power supply: 380 V / 50 Hz / 10 A / 3,5 kW/h / 6 bar
