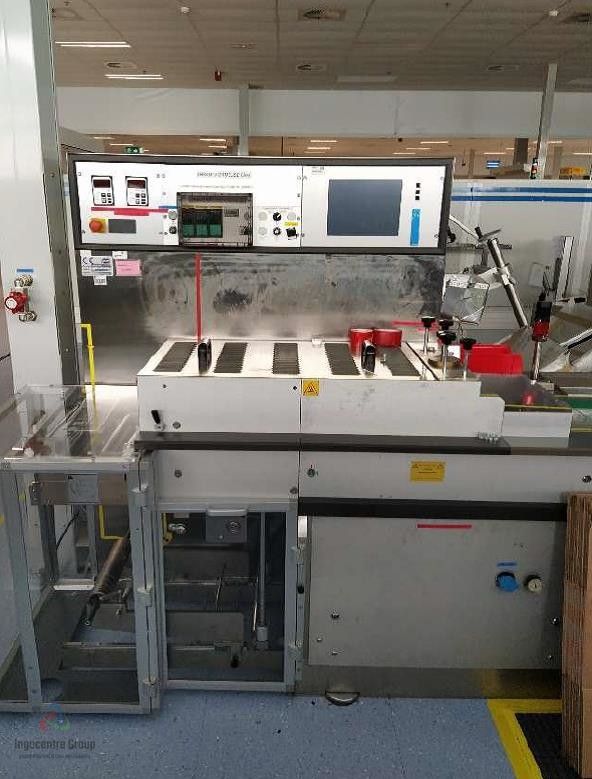

Cam, Partena M92S, Blister Machine

Max step: 180mm
Max width of the film: 286mm
Max depth of the socket: 25mm
Cadence: 20 to 50 cycles/min
Outlet belt width: 90mm
S7-300 SIEMENS PLC

Actual formats:
PF2314-1
Syringe: 87.5xØ11mm
Needle: 63xØ10mm
Vial: 34.5xØ16.5mm
Blister: 128x49x18mm
Lid: PET-PE 0.012-0.05mm
Blister: PETG 0.4-0.5mm
PF2502-1
Syringe: 87.5xØ11mm
Needle: 69xØ10mm
Blister: 128x36x17mm
Lid: PET-PE 0.012-0.05mm
Blister: PETG 0.4-0.5mm

Water: 1 to 2.5 bar, 0.7m3/h

Compressed air: 6 to 8 bar, 500 Nl/min

Hydraulic pressure: 96 to 144 bar, TERESSTIC-T32 oil or equivalent

Format change trolley dimensions (Lxlxh): 1000x600x1450mm

Overall dimension (LxWxH): 7800x1900x2000mm

Power: 3x400V+N+PE, 50Hz, 15kW
