Canon CX-1 Hybrid Digital Retinal Camera

The CX-1 Hybrid Digital Mydriatic/Non-Mydriatic (MYD/NM)
Retinal Camera is Canon's first hybrid camera and
a non-mydriatic camera to use Fundus Autofluorescence (FAF)
photography.

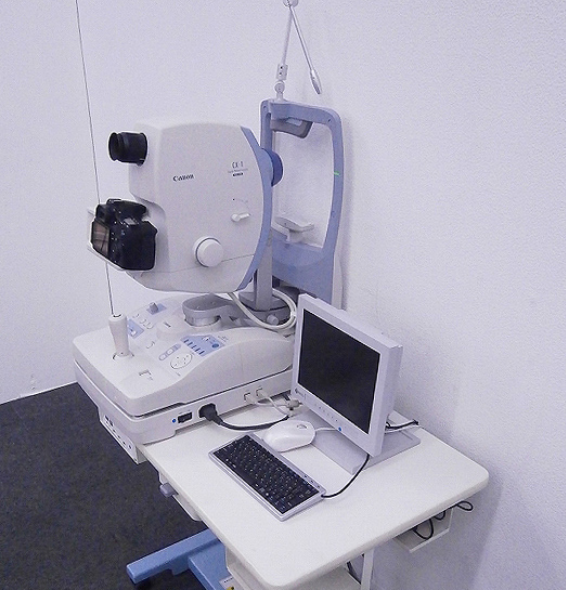

Canon CX-1 Digital Hybrid Retinal Camera includes:
Canon CX-1
Electronic stand SA-75R
Canon EOS-50D MarkII MED
PC set with HD-screen (Retinal imaging control software for CX-1) OS: Windows 7.
Voltage: 100-240V 50/60 Hz 8-4A
Weight: 57 pounds (26 kg)

Features:
Digital Retinal Camera, Hybrid camera MYD / Non MYD
AF (Fundus Auto Fluorescence), also in Non Myd mode
Use of EOS technology
Advanced Stereo photography system
Bundled Retinal Imaging Control Software
Open connectivity and DICOM compliant
Canon CX 1 Hybrid Mydriatic/Non-Mydriatic Digital Retinal Camera is
Canon’s first retinal camera that is completely hybrid using modes that
are the two non-mydriatic and mydriatic.
The operator can switch between mydriatic and non-mydriatic modes,
performing many concurrent ocular evaluations and utilizing functions
within minutes. FAF is autofluorescence in macular waste
Lipofuscin’s incidence. Examinations that check and track waste material
are a key step in age-related muscular degeneration detection.
Using the manner not only saves time and resources, but it also can
make the diagnostic process more comfortable for the patient.

Canon CX 1 is a Hybrid retinal camera: both mydriatic (needs eye fall to
dilate pupils) and non-mydriatic. This two in one Fundus Camera is simple
to operate, features auto-focus and auto-shot, photography that is
perfect for the small student. The quality of Autofluorescence Photography
picks up heat, blood circulation and abnormalities in blood vessels,
making it easier to detect retinal disease.

Canon CX 1 captures high-quality pictures in five photography modes: color,
red-free, cobalt, fluorescein angiography as well as technically hard fundus
autofluorescence (FAF). Users can capture these images in non-mydriatic or
mydriatic mode, simply by pushing a button to switch between modes.

Canon CX 1 Features
Five Photography Modes: Canon CX 1 offers five photography modes
including Color, Red-Free, Cobalt, Fluorescein Angiography (FA),
and Fundus Autofluorescence (FAF).
Non-Mydriatic Fundus Autofluorescence (FAF) Photography: With the push
of the Myd/Non-Myd button to select the non-mydriatic mode and
the FAF mode, the operator is ready to begin taking images.
The FAF mode helps monitor macular waste such as lipofuscin,
which assists the eye care professional with
detecting age-macular degeneration (AMD), glaucoma, and diabetes.
One Touch Selection of MYD/NM: A single push of the Myd/Non-Myd
button switches between the mydriatic and non-mydriatic imaging modes.
Control Panel: Whether the CX-1 is in mydriatic or non-mydriatic mode,
the control panel has simple operation, workflow efficiency,
and ergonomic controls.
Superior Image Quality: Clear, high-resolution images are available in
either mydriatic or non-mydriatic mode. The 2x mode magnifies the image
by automatically cropping out the peripheral edges so the region of
interest is larger in the frame.
Stereo Photography System: The LCD monitor displays guides which
automatically determine the base length for acquiring successful
stereo images. The two images can be stored as a pair making it easier to
manage the files.
EOS Camera Technology: Made exclusively for the CX-1, the detachable
camera features Canon’s EOS camera technology with its renowned image
processing capabilities providing optimal retinal imaging.
The camera handles five different photography modes including
non-mydriatic FAF photography, Color, Red-free, Fluorescein Angiography,
and Cobalt.
Retinal Imaging Control Software: Using the
Canon Retinal Imaging Control Software (RICS), images can be viewed,
manipulated, sent to a DICOM storage device or stored as DICOM or
JPEG images and sent to a printer.
