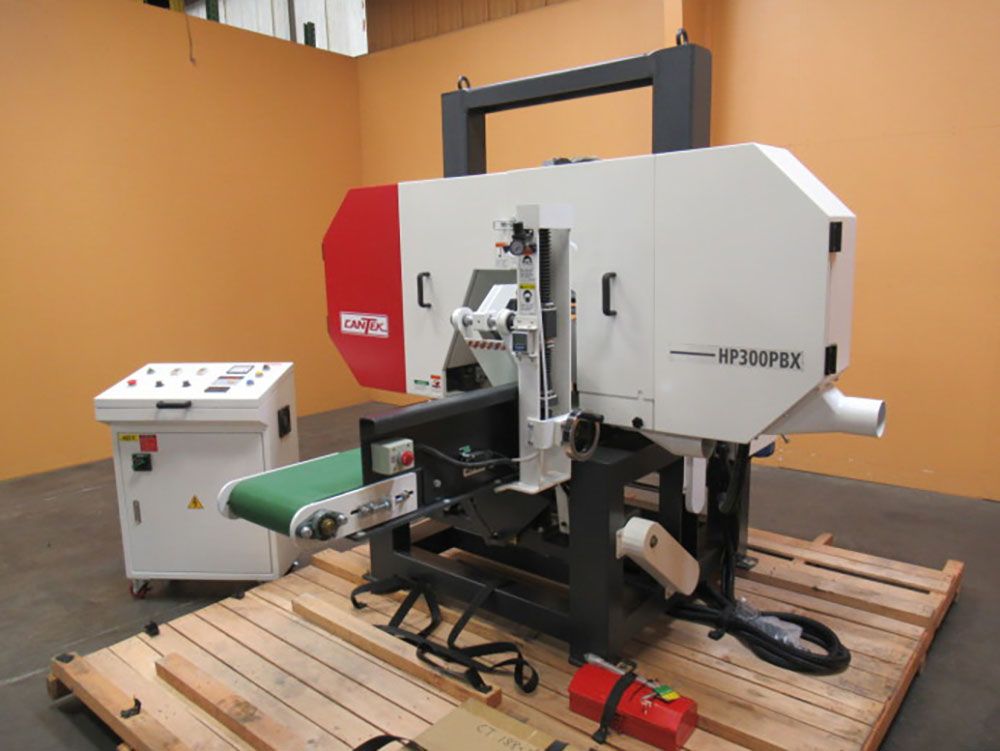

Cantek HR300PBX

Horizontal Resaw
30 hp saw motor
12" x 12" maximum workpiece size
3 hp variable speed feed 0 to 148 fpm
Manually tilting feed bed for straight or bevel cutting from 0 to 45 degrees
.25 hp motorized thickness adjustment with digital readout
Distance from blade to conveyor: .157" to 9.8" max
Air mist blade cooling system
28" dia. x 2" wide solid steel saw wheels
Saw blade size: 180" x 2"
Hydraulic blade tensioning
Mobile control panel
Y Delta low amperage starter on saw motor
Pneumatic top hold down pressure rollers
Dust Extraction: (2) 4" outlets (800 cfm required)
Voltage requirements: 45 amps @ 460 Volt
Shipping dims: 113" x 90" x 85"
Machine shipping weight: 4,400 lbs.
