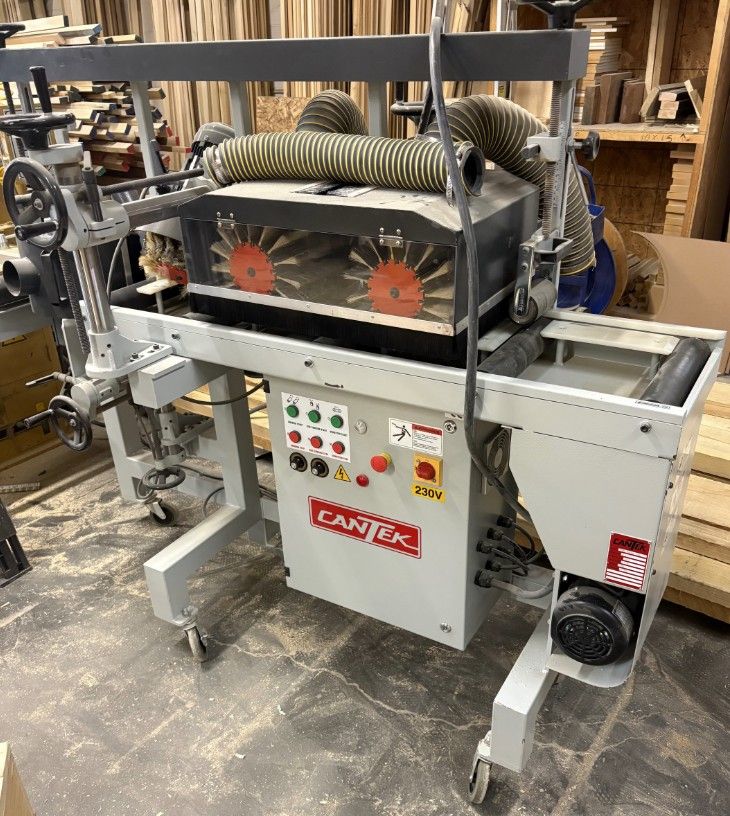

Cantek LBS300-5S

3-Sided Lineal Brush Sander
Features:
- Main Frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
Centralized Control Panel for operator convenience. Clearly Identified & colour coded push buttons simplifying setup & operation
- Variable speed adjustment by inverter (VFD’s) to all brush sanding heads (200-1200 RPM) for optimum sanding results
- (2) Sets of top brushing sanding heads with working height adjusted by handwheel and can be set on an angle for bevel siding & angled mouldings
- (1) left side brush sanding head is adjustable up/down, in/out and can be set on an angle
- (1) right side brush sanding head which can be adjusted up/down and in and out and can be set on an angle
- (1) Additional left side sanding head is adjustable up/down, in/out, and can be set on an angle
- Top Press Rolls Working Height adjusted by hand wheel.
- Brushing head consists of cleaning brush units and abrasive cloth units
- The dovetail pocket design allows for easy abrasive/brush replacement.

Specifications:
- Max. working width 12″
- Max. working height 4″
- Min. work-pieces length 33″
- Min. work-pieces thickness 3/8″
- Feed speed (Variable) 20~56 FPM 6~17 M/min
- Speed of sanding wheel 200 ~ 1200 RPM
- Top brush head motor 2 x 3/4 HP
- Left brush head motor 1 x ½ HP
- Right brush head motor 1×1/2 HP
- Left brush head motor 1×1/2 HP
- Conveyor motor 1/4 HP
- Moving brush head motor 1/3 HP
- Dust ports 4 x 90 mm and 1 x 60 mm
- Machine dimension (LxWxH) 73” x 49” x 61”
- Packing dimension (LxWxH) 81” x 40” x 64”
- Net weight 748 LBS
- Gross weight 1034 LBS
- Power requirements 230/3/60 = 14 Amps - 460/3/60 = 7 Amps
