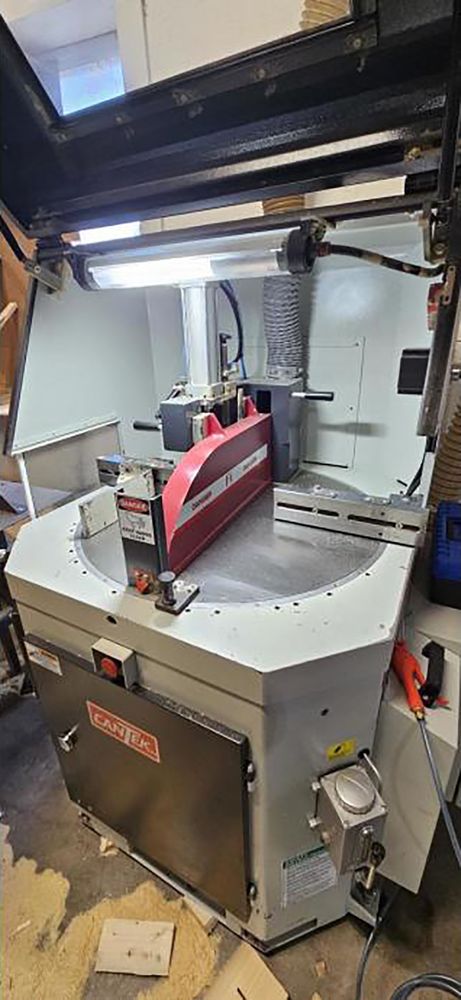

Cantek PCM-508 Pneumatic Cut-Off Saw with Rotary Table

Features:
Designed for High speed, accuracy and production.
Specially designed rotary table allows angular cutting quick and easy.
The clamping mechanism is mounted with linear guide ways

Rotary Table:
The table can be swiveled to right and left with maximum 45° angle. This allows for angular cutting.
The table is equipped with a lock pin, allowing the table to fast lock position at 45°.
Table surface is precision ground.

Precision, Quick Clamping Mechanism:
The clamping mechanism is driven by an air cylinder in combination with the use of linear guide ways, which ensure fast and smooth clamping motions.

Infeed & Outfeed Fence:
Infeed and outfeed fence surfaces are precision ground.
Equipped with an anti-bump rubber stop to prevent serious bumping of clamp.

Specifications:
Cutting Capacity (Thickness x Width): +45° (max 60°) ~ 0° ~ -45° (max. 60°)
Cycle speed: 30~45 cuts/min
Saw blade size: 20"
Saw arbor diameter: 1"
Saw blade speed: 3100 RPM
Dust exhaust diameter: 4" x (2)
Air consumption: 21.15
Motor: 7.5 HP, 230V, 3PH/60Hz
Table size: 36.2" x 24.8"
Net weight: 1190 lbs
Gross weight: 1455 lbs
