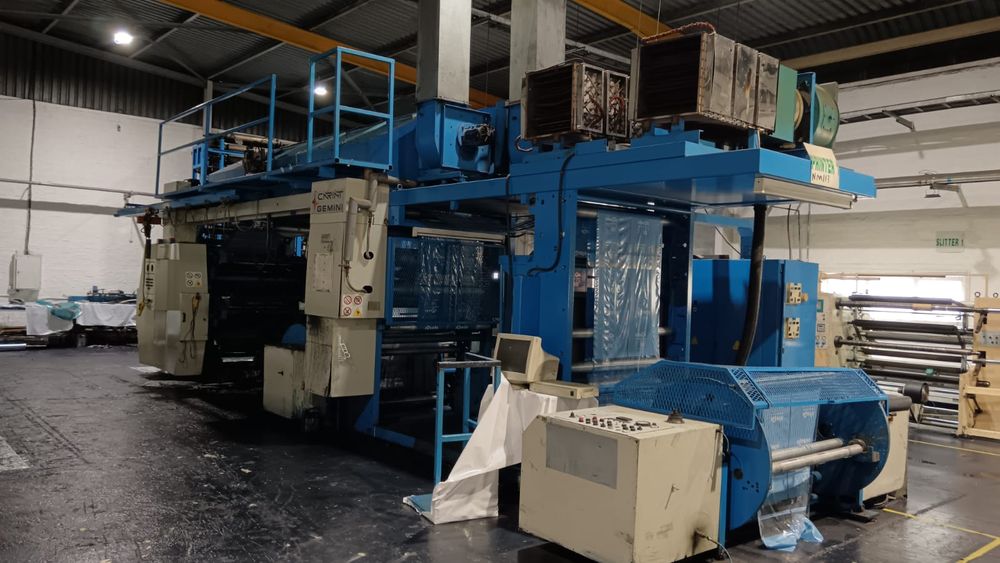

Carint GEMINI 6 1,250 mm

The Carint central impression flexographic printing press is designed for printing on PE, PP, OPP, PET films and paper.
The machine is equipped with 6 printing colours (6+0), geared drive and is suitable for a wide range of flexible packaging applications.

Material width: 1,280 mm
Printing width: 1,250 mm
Print repeat: Min: 360 mm / Max: 1,040 mm
Mechanical speed: Up to 300 m/min

UNWINDER AND REWINDER
The machine is equipped with a non-stop turret unwinder and non-stop turret rewinder. Maximum reel diameter : 800 mm.
Expanding shafts: 3"

DRYING SYSTEM:
Electrical drying system.
INK SUPPLY
6 pneumatic ink pumps.

ACCESSORIES :
• Motorized longitudinal register
• Chamber doctor blade system
• 8 Anilox cylinders
• 6 Plate cylinders
• Video inspection system
• Web guides
• Banana rollers
• Plate cylinder lifting hoist
• 2 electrical hoists
• 2 cylinder storage racks with 6 cylinders of various repeat sizes
