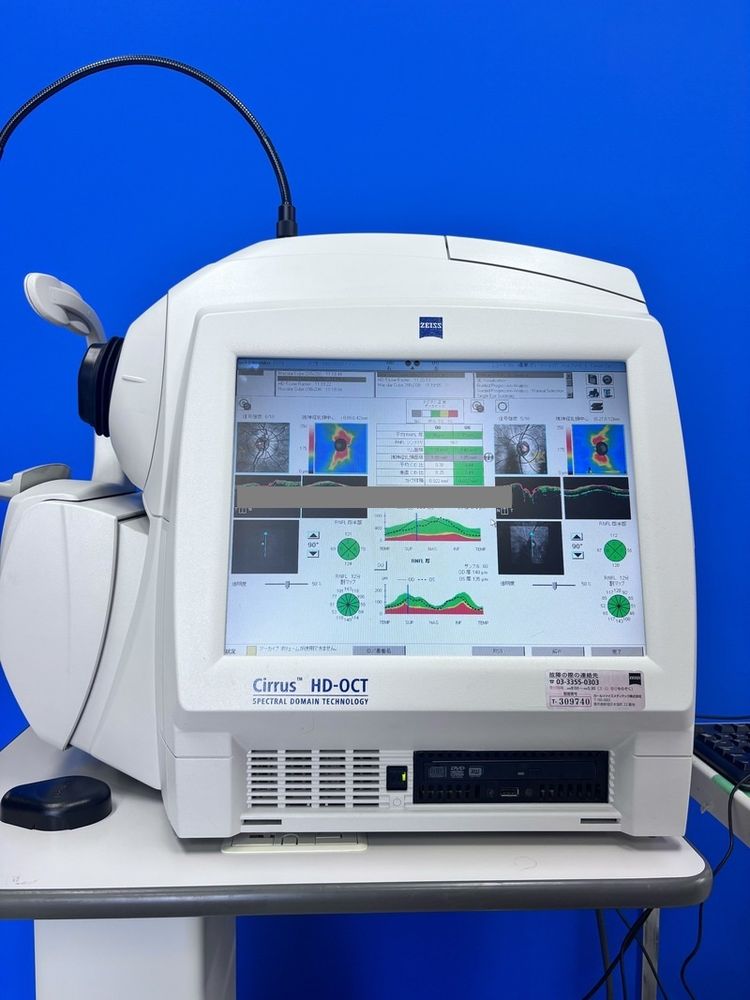

Carl Zeiss Cirrus 4000 HD OCT

The ZEISS Cirrus HD-OCT 4000 (Cirrus HD-OCT or Cirrus) enable
examination of the posterior and anterior of the eye at an
extremely fine spatial scale, without surgical biopsy or
even any contact with the eye.
The Cirrus HD-OCT builds on and refines the retinal imaging technology
first introduced with the ZEISS Stratus OCT HD-OCT stands for
"high-definition optical coherence tomography."

Specification & Options
*Weight: 38kg (83 lbs)
*Dimensions: 65L x 44W x 53H (cm)
* HD-OCT Imaging
Methodology: Spectral Domain OCT
Optical Source: superluminescent diode (SLD), 840 nm
Optical Power: < 725 μW at the cornea
Scan Speed: 27,000 A-scans per second
A-Scan depth: 2.0 mm (in tissue), 1024 points
Axial resolution: 5 μm (in tissue)
Transverse resolution: 15 μm (in tissue)

*Fundus Imaging
Methodology: Line scanning ophthalmoscope
Live Fundus Image: During alignment and during OCT scan
Optical Source: Superluminescent diode (SLD), 750 nm
Optical Power: < 1.5 mW at the cornea
Field of View: 36 degrees W x 30 degrees H
Frame rate: >20 Hz
Transverse resolution: 25 μm (in tissue)

*Iris Imaging
Methodology: CCD Camera
Resolution: 1280 x 1024
Live iris image: During alignment
Configuration
Cirrus 4000 + a keyboard, a mouse.
Version : 6.5.0.772

Licensed : Acquisition Auto Focus, 3D Volume Rendering, Segmentation
Layer Editor, Macular Normative Data, Macular Change Analysis,
Macular Reports, Anterior segmane imaging, Guided Progression Analysis,
ONH and RNFL Analysis, Single Eye summary Analysis,
ONH Normative Data, Asian JNormative Data, Ganglion Cell Analysis

NOT Licensed : Advanced RPE Analysis, Tracking, Review Software.

Condition
Patient ready
