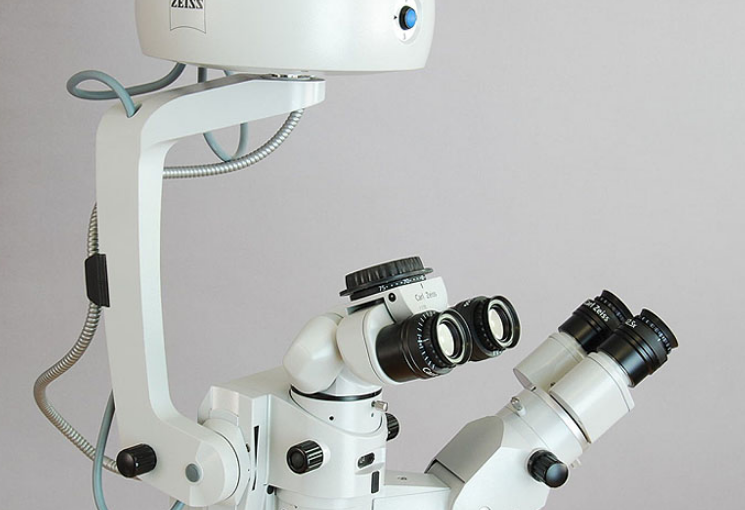

Carl Zeiss OPMI Visu 200 S8 Surgical Microscope

Excellent condition Opmi Visu 200, latest checked and tested by Zeiss authorized in 2023,
ready to work, All items are sold in as-is condition with 6-month warranty.
including Zeiss retrofit camera with adapter and Panasonic WV-KS152 control camera.

Features:
Eyepieces: 2 x 12.5x
Objective Lens: F200
Zoom Main Binocular: Progressive 0.4-2.4
Zoom Secondary Binocular: Fixed 0.6, 1, 1.6, 2.5
S8 Floor Stand

Carl Zeiss OPMI Visu 200 S8 Surgical Microscope Includes:
Head: OPMI VISU 200 apochromatic optics, asist. rotatable Focus and Zoom
Illumination system: System of a light ± 2 ° for red reflex and a light adjustable 6th
Field Lighting: Up to 65mm
Type of Focus: Halogen 12v. 100w. fault with automatic focus
Binocular: Tilt 0 ° -180 °, F = 170mm, with Eyepieces 12.5x
Objective Lens: Working distance F = 200mm or the of your preference
Approach: Motorised with 50mm stroke and automatic centering
Magnification: Powered by apochromatic optical zoom ratio 1:6, 4.9x - 29x
XY: Tour of 100mm x 100mm with automatic centering
Pedal: Waterproof; 10 to 14 functions
Filter: GG 475 for eye protection, UV and IR
Position: Through fire handles with magnetic brakes

Zeiss OPMI Visu 200 Ophthalmology Microscope
The Carl Zeiss OPMI Visu 200 Ophthalmology Microscope is a versatile unit mounted on
a mobile stand for maximum positioning abilities. Clinicians can easily customize the
OPMI Visu 2000 for a variety of surgical workflows. For more information, contact an
Avante representative today.

Features
Apochromatic optics provide brilliance, definition and contrast.
Maximum image quality, minimum eye fatigue.
Red reflex light is rich in contrast, low in reflections — perfect for eye surgery.
Versatile microscope can be tailored specifically to your needs by changing the magnification, lamp brightness, zoom, focus and X/Y speeds.
Effortless positioning with simple locking button design.
Motor speeds for XY and focus are dependent on the current magnification.
Main and assistant’s microscope work independently.
Mobile floor stand has large casters and a convenient handle for easy maneuvering

SPECIFICATIONS
Main Microscope
Apochromatic optics
Motorized zoom system, zoom ratio 1:6
Focusing range: 50 mm
Tiltable tube: 50°, f=170 mm
Objective lens: f=175 mm (f=200 mm optional)
Magnification: 5x - 30.1x
Field of view diameter: 7.5 - 44.9 mm

Assistant’s Microscope
5-step magnification changer
Separate fine focusing
Adjustable tilt angle, 30° optical wedge (optional)
Eyepieces: 10x

XY Coupling
Range of adjustment: 40 mm x 40 mm
Control for automatic reset of XY, zoom, focus
Inversion of XY direction of travel possible via foot control panel

Illumination
Fiber light guide, two lamp housings, each with two 12 V 100 W halogen lamps
Fully automatic change to back-up lamp in event of lamp failure
Filter against UV radiation
Protection against IR exposure
Footswitch control of illumination intensity

Weights
VISU 200 (without accessories): 13 kg
S8 Floor Stand: approx. 200 kg
Max. weight capacity of suspension arm (including VISU 200): 20 kg
Electrical Design
Protection class 1, type B

Accessories
Fiber slit illuminator, co-observation tubes (mono and stereo),
video and 35 mm photography, dual fiber illumination
