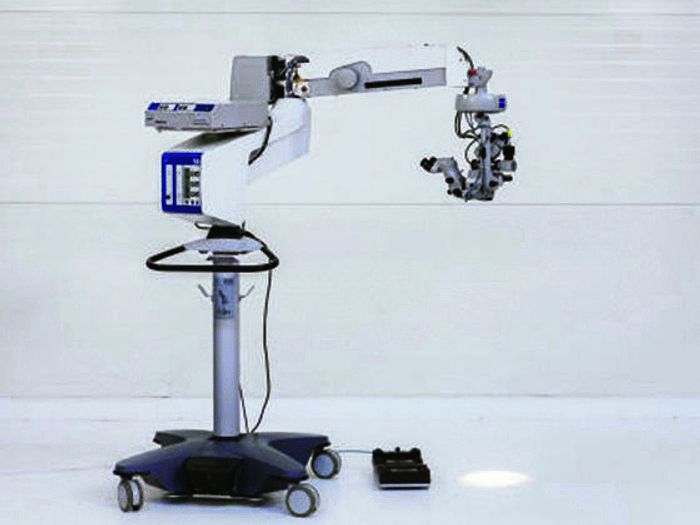

Carl Zeiss Visu 200 Operating Microscope

MAIN FEATURES
Main microscope
- Apochromatic optics
- Motorized zoom system, zoom ratio: 1: 6
- Focusing range: 50 mm
- Inner tube 50°, f=170 mm
- Eyepieces: 12.5x
- Objective lens: f=175 mm
- Magnifications: 5x - 30.1x
- Field of view diameter: 7.5 - 44.9 mm

Electrical design
- Protection class 1, type B

Lighting
- Fiber optic light guide, two lamp housings,
each with two 12 V 100 W halogen lamps
- Automatic switchover to emergency lamp in the event of
lamp failure
- UV filter
- Protection against infrared exposure
- Foot-operated light intensity control

Lighting geometry
- Patented 2° red reflex lighting with +2° and -2° settings,
DE 40 28 60 5 C2 6°, with continuous fade option
- Patented retinal protection device, DE 33 39 17 2 C2
- Patented field stop to reduce glare, G 91 03 43 3 7

Weight
- VISU 200 (without accessories): 13 kg
- Ground support S8 approx. 200 kg
- Maximum weight capacity of suspension arm
(including VISU 200): 20 kg
