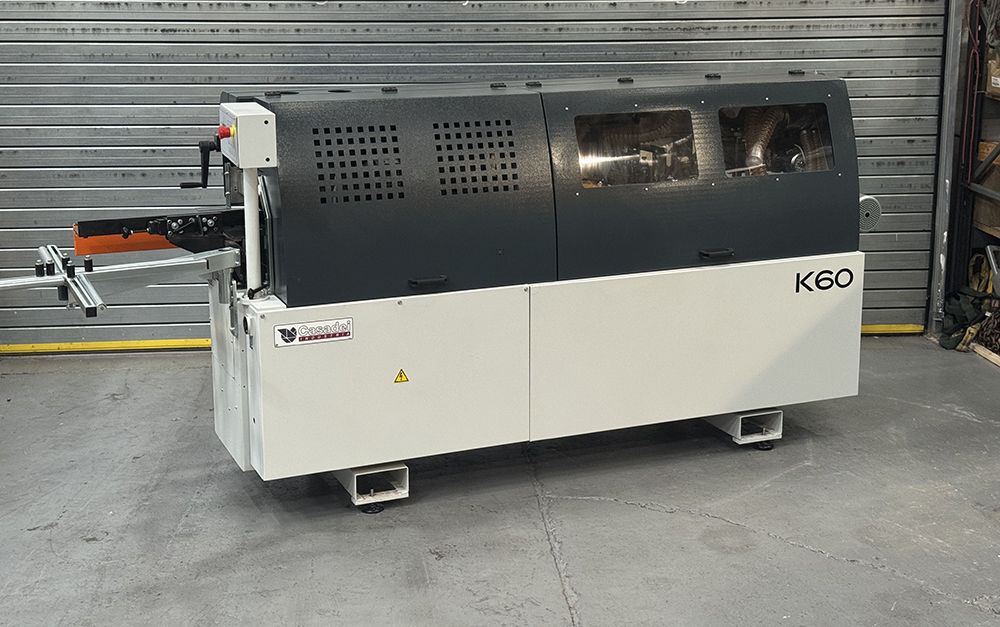

Casadei K60PM

Used Edgebander
Panel height min-max: min 10 - max 60 mm
Panel width: min. 110 mm
Panel length: min. 120 mm
Edge thickness min-max: 0,4 - 3 mm (coil) /
0,4 -8mm (strips)
Panel feeder speed: 11 mt/1'
Max coil diameter 800 mm
End trimming motor: 200 Hz - 12.000 RPM - 0,27 KW
Flush trimming motors (each): 200 Hz - 12.000 RPM - 0,50 KW
Cutterheads -
TCT combined cutters
(bevelled/radius): ¢ 75 mm Z4 - hole ¢ 16 mm (r=2 - 3 mm)
Total power installed: ca. 5 KW
CE yes

Options included:
LOLAMP INFRARED LAMP
LORF05 FLUSH TRIMMING MOTORS Kw 0,50
LOF203 R2 mm - 3° CUTTERBLOCK
LOIN46P 45° END TRIMMING UNIT H=60 CUT 0°-20° - 0.30KW
LORASB EDGE SCRAPING UNIT
LORSCL GLUE SCRAPING UNIT
LOSPA5 BUFFING UNIT
LORIEI ANTI-ADHERENCE SPRAY UNIT
LOSPEC LOPURE GLUEING UNIT
LIGPAL PALLET PACKING
