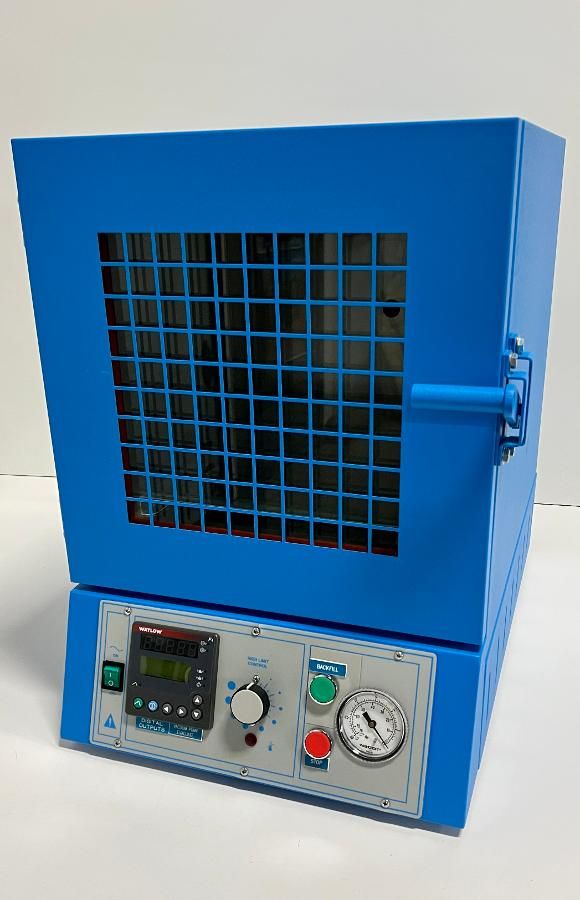

Cascade / TEK TVO-2

Maximum Temperature 220 ºC (428 ºF, 493 ºK)
Heat/Cool Controls
Control Type Programmable
Overtemperature Protection YES
Interface RS 232
Controller Manufacturer/Model Watlow F4S
Capacity/Volume Box 1.70 cu ft (0.05 cu m)
Chamber Size
Width 12.00 in (30.48 cm)
Depth 20.00 in (50.80 cm)
Height 12.00 in (30.48 cm)
Chamber Characteristics
Chamber Construction Stainless steel
Viewing Window YES
Other Information

Minimum temperature 5º C above ambient
Compressed air 60 psi required for operation
Vent solenoid (push button controlled)
Profile stop button (to abort running profile)
Over-Temperature Safety Thermostat
Mechanical vacuum gauge
F4S controller capable of 256 possible ramp steps in as many as 40 variable-length, nameable profiles. Guided setup and programming software Watview for Windows XP https://www.watlow.com/-/media/documents/software-and-demos/executables/watview0906.ashx
Profile controlled vacuum pump outlet
Profile controlled vacuum electro-pneumatic valve, 1"
Optional vacuum pump (not included)
Oven has two power cords- one for the oven, another for the vacuum pump

Power Requirements 115 V 10.0 A 13.0 A(2) 50/60 Hz 1 Phase
Exterior Dimensions
Width 18.750 in (47.6 cm)
Depth 26.500 in (67.3 cm)
Height 24.500 in (62.2 cm)
