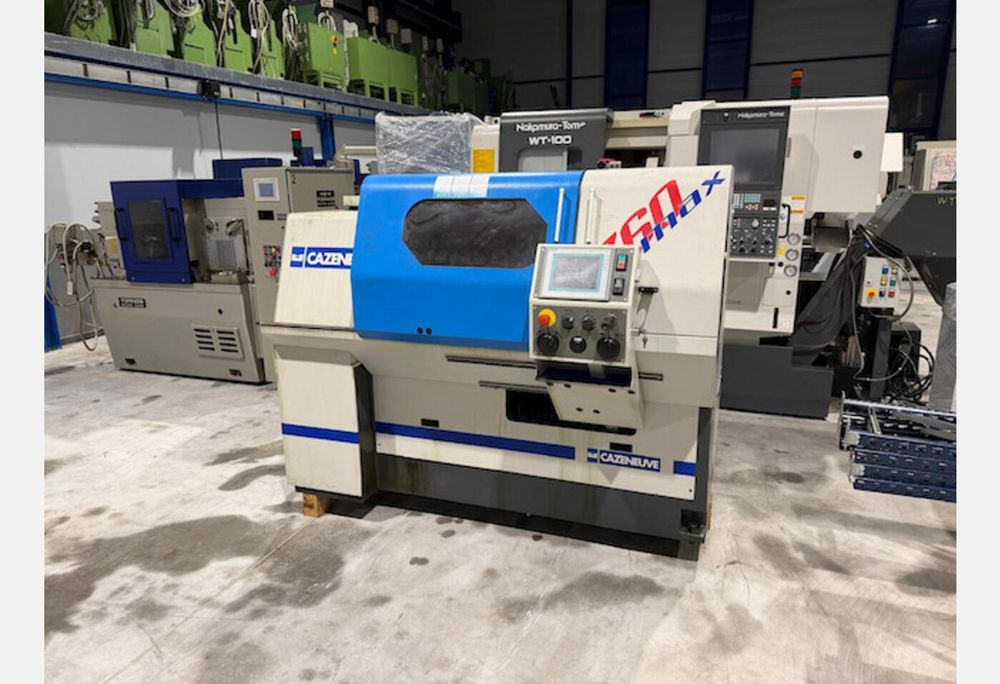

Cazeneuve SIEMENS control panel 3000 rpm OPTIMAX 360 LEARNING 2 Axis
Ref :
2780945-3-MT
Condition :
Used
Manufacturer :
Cazeneuve
Controller :
SIEMENS control panel
Spindle Speed :
3000 rpm
Model :
OPTIMAX 360 LEARNING
Nb Of Axis :
2 Axis
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Cross travel: 180 mm
Longitudinal travel: 610 mm
Control: SIEMENS control panel
Maximum diameter over bed: 380 mm
Maximum diameter over slide: 200 mm
Bar diameter: 54 mm
Spindle nose: ISO A1 6"
Maximum spindle speed: 3000 rpm
Maximum spindle power: 11 kW
Turret type: Multifix type B
Turning tool section: 20 x 20 mm
Boring bar diameter: 36 mm
Tailstock sleeve diameter: 60 mm
Tailstock sleeve stroke: 140 mm
Tailstock taper: Morse taper No. 4
Machine dimensions: 1950 x 1320 x 1820 mm
Machine weight: approximately 2000 kg
Set of tool holders
