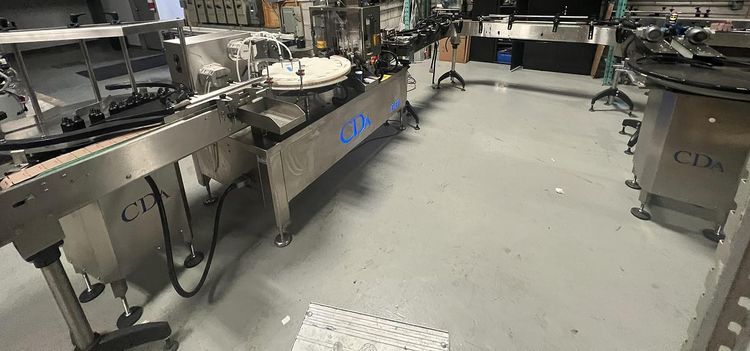

CDA E-FILL

Automatic Monobloc Liquid Filling and Packaging Line.
Line was manufactured in 2021 and was sparingly used.
Line consists of the following equipment:
· 27” diameter feeding/unscrambling table.
· 2 Up liquid filling nozzles with 2 Flexion peristaltic pumps, 1ml to 1l.
· Pneumatic chuck capper. Caps placed by hand on the star wheel.
· Pressure sensitive wraparound labeler with “3 points” technology for precise bubble and wrinkle free labeling.
· 27” accumulating table.
· U-shape conveyor, 3-14” wide belt.
Equipment constructed in 304 Stainless Steel.
Comes with color touchscreen interface, up to 50 recipes.
Filling accuracy: +/- 0.5%. Bottle size: 18mm to 90mm diameter.
Includes 1 set of change parts: 33mm.
Electrics: 1/60/220 volts. Air: 4m³/Hr/Max. 4 bar.
