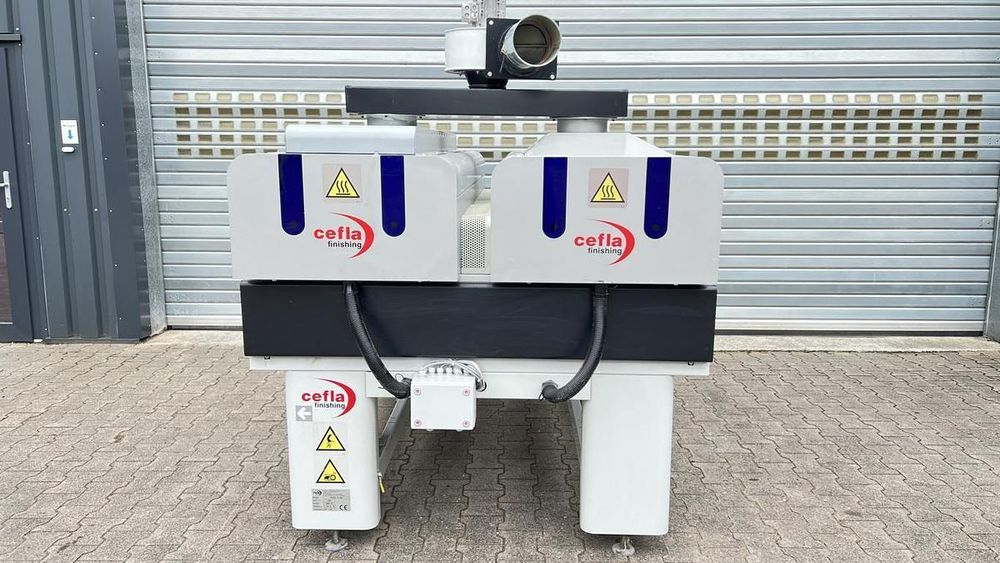

Cefla Infrared dryer

Consisting of:
Module 1:
- 3 pcs. IRM lamps with an output of 3500 watts/lamp
- Painted sheet metal structure.
- Installed electrical power 10.5kW

Module 2:
- 2 pcs. IRM lamps with an output of 3,500 watts/lamp
- Painted sheet metal structure.
- Installed electrical power 7.0kW
Total connection approx. 19.5kW/400V/50HZ

Exhaust air:
- Exhaust air fan approx. 1,800 m³/h
- Supply air/room air approx. 1800 m³/h
- Extraction nozzle D160mm

ROLLER CONVEYOR
- Celfa
- Year of construction 2008
- Steel rollers with heat protection tape wrapped
- Roller pitch 160mm
- Feed by handwheel adjustment
- Installation length 2,000 mm
- Feed rate approx. 3 - 7.5 m/min.
- Incl. switch cabinet
- 400V/50HZ
