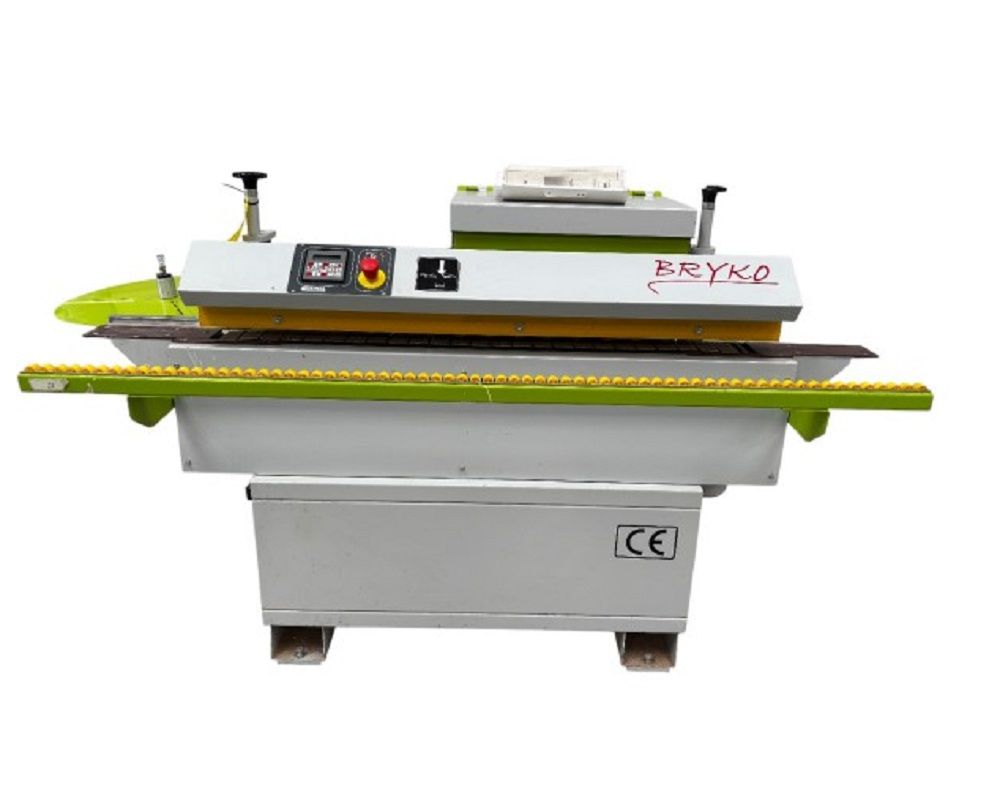

Cehisa BRYKO

EDGE BANDER
MAKING CAPACITIES:
- Height (thickness) of the panel to be machined: 8 to 40 mm
- Minimum length of the panel to be machined: 120 mm
- Minimum width of the panel to be machined: 75 mm
- Edge thickness: 0.4 to 2 mm
- Feed (feed speed): 5.5 m/min

MACHINE COMPOSITION:
- Feed table, 600 mm usable diameter
- Work table, front extension (length x width): 1910 x 400 mm
Work surface height from the ground: 90 cm
- Feed chain conveyor
- Gluing unit with tray
Pneumatic pre-cutting guillotine
Matting (pressing) with 2 rollers, including 1 motorized unit
- End-cutting unit with 2 saw-milling bits Ø100
- Top/bottom trimming unit
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- Main power supply: 400V. Three-phase + T 50Hz
- Installed power: 2.5kW IN Max 4.5 A
- Drive motor: 0.37 kW
- Saw motor: 0.2 kW
- Trimming (milling) motors: 2 x 0.27 kW
- Operating pneumatic pressure: 6-7 bar
- Suction: mm
- CE marking, disconnect switch, mushroom stops
Dimensions (LxWxH): 1.95 x 1.30 x H.1.30 m
Weight: 440 kg
