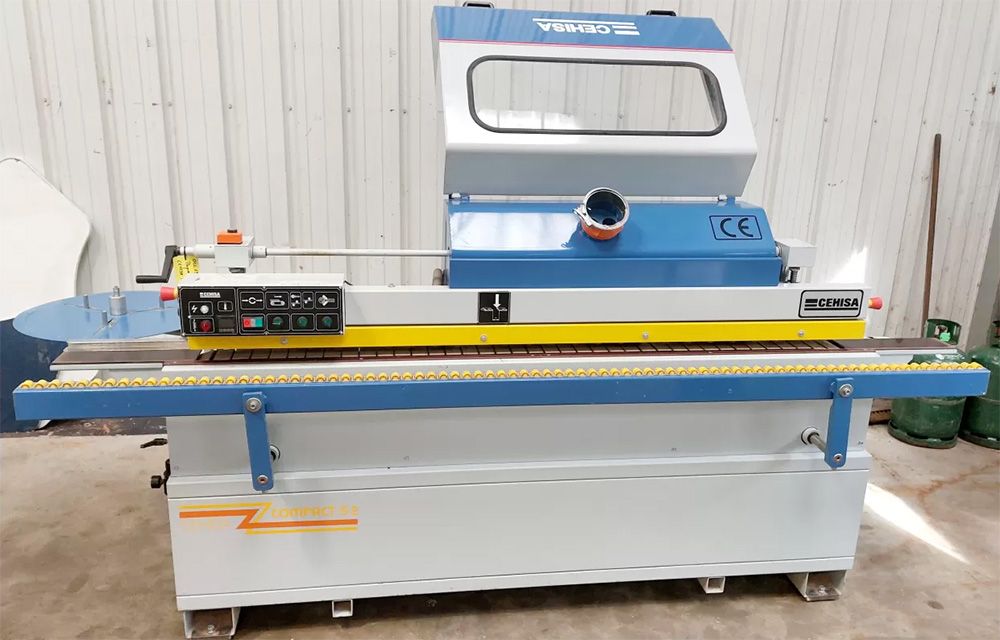

Cehisa COMPACT 5.2

Edgebander/Gluer
MAKING CAPACITIES:
- Panel height (thickness): 8 to 50 mm
- Minimum panel length: 120 mm
- Minimum panel width: 75 mm
- Maximum PVC edgebanding thickness: 2 mm
- Feed speed: 10 m/min

MACHINE COMPONENTS:
- Unwinding tray: Ø480 mm
- Work table with front extension (length x depth): 2.80 x 0.25 to 1.00 m
Work surface height: 88-89 cm
- Chain conveyor
- Gluing unit with EVA granulate tray
Pneumatic pre-cutting cutter
3-roller pressing unit, one of which is motorized
- 12,000 rpm end-cutting unit
- 12,000 rpm radius cutter unit (top/bottom) with copying attachments
- Polishing station with textile brush
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- 400V power supply. Three-phase + N + T 50Hz
- Installed power 2.9 kW - Max. current 5.2A
- Drive motor 0.75 kW
- Saw motor 0.27 kW
- Flush trimming (milling) motors 2 x 0.27 kW
- Polishing motors 2 x 0.27 kW, 1325 RPM
- Pneumatic supply 8 bar, dry air
- Dust extraction port Ø120 mm
- CE marking, lockable disconnect switch, emergency stop buttons
Dimensions (W x D x H): 3.00 x 1.10 x 1.40 m
Weight 750 kg
