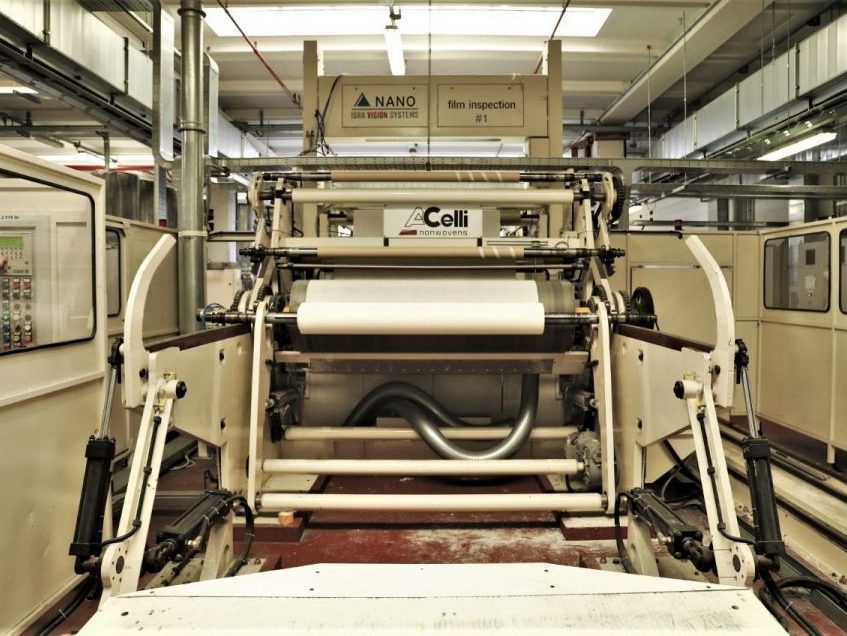

Celli 1.700 mm automatic non-stop rewinder for non-woven & paper

Ref : 2265059-2-CP
Condition : Used
Manufacturer : Celli
Width : 1.700 mm
Type : automatic non-stop rewinder for non-woven & paper
Year(s) : 2004
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 25 Aug. 2023

1.700 mm Automatic rewinder for non-woven and paper
1.04 Rewinder type Automatic peripheral non-stop, POPE type
1.05 Rollers width (mm) 1.900
1.06 Max reel width (mm) 1.700
1.07 Max reel diameter (mm) 1.300
1.08 Cores diameter (mm) 76 (also suitable for other diameters)
1.09 Max mechanical speed (m/min) 250
1.10 Threading speed (m/min) 10
1.11 Web tension range (kg/m) 2 ÷ 10
1.12 Tension control system By load cells
1.13 Taper effect Yes
1.14 NIP control system Yes
1.15 Materials Non-woven and paper (50 - 60 g/m²)
1.16 Independent cabinet Yes; PLC (S7) and drives SIEMENS
1.17 Cross cut By circular blades
1.18 Slitting system Model PC 130
1.19 Trim suction device Yes
1.20 Orientation The reel is unloaded to the right side of the operator
1.21 Frame color RAL 9001 (cream white)
1.22 More information The corresponding automatic unwinder is available; a reels packing system complete with tipper is available
Status as of aug 25, 2023: this rewinder is part of a complete line, that actually is stopped but still inline and sill connected.
In working condition,
immediately available
