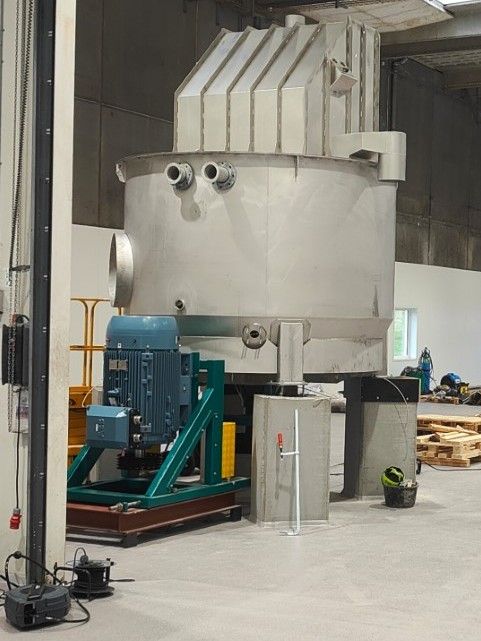

Cellwood Machinery, Grubbens 8m3 vertical pulper, New 2024!
EUROPE (Western and Northern)
Manufacturer Grubbens Cellwood
Type Vertical V8-64/51S PULPER
Manufacturing NEW Year 2024
Decription:
Material: Virgin fiber softwood, bleached and
unbleached
Flash dried bales
Capacity: One (1) bale (200 kg) / batch
Dryness of pulper bales: 90-92 % (assumed)

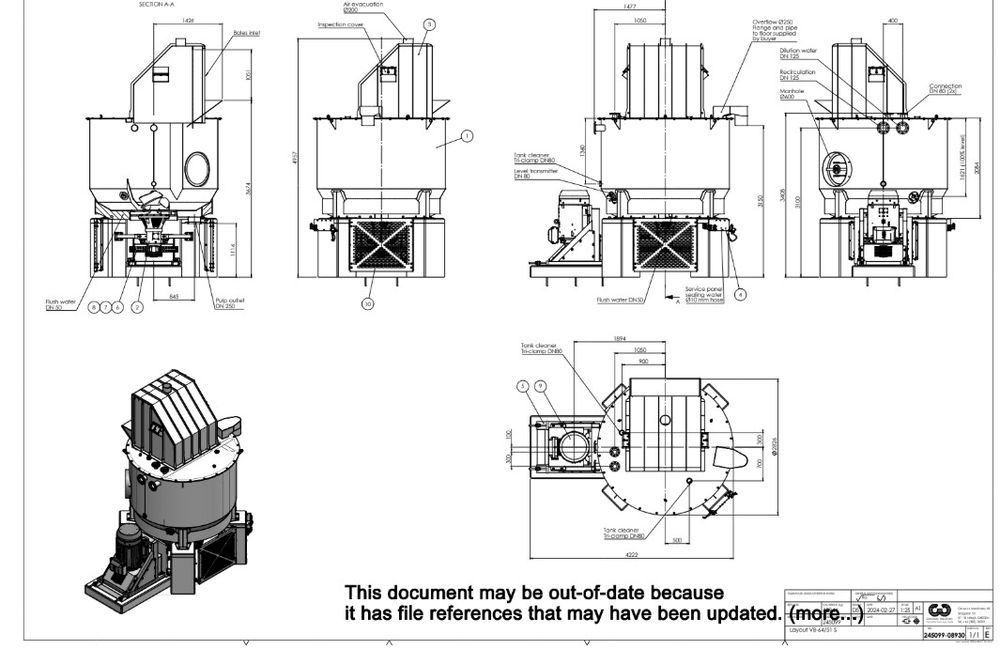

Design: Vertical without strainer plate, as per
principal sketch, see in photos- or pdf sent upon request.
Operation: Batch
Effective volume: 8 m³
Installed motor: 110 kW/1000 rpm (excl.)
Frequency converter necessary (excl.)
Power consumption: 53 kW
Rotor speed: 385 rpm
Rotor diameter: 640 mm
Transmission: V-belts (incl.)
Equipped with: GRUBBENS ROTOR UNIT Type 64/51S
-Rotor unit is with bearing unit, screen plate and rotor. SKF spherical roller bearings.
-Screen plate in EN 1.4162 with Ø 20 mm holes. Screen plate can be turned around for doubled wear time.
-Tool for rotor removal included.
-All parts in contact with the stock are made of stainless steel EN 1.4460 and/or EN 1.4404.
