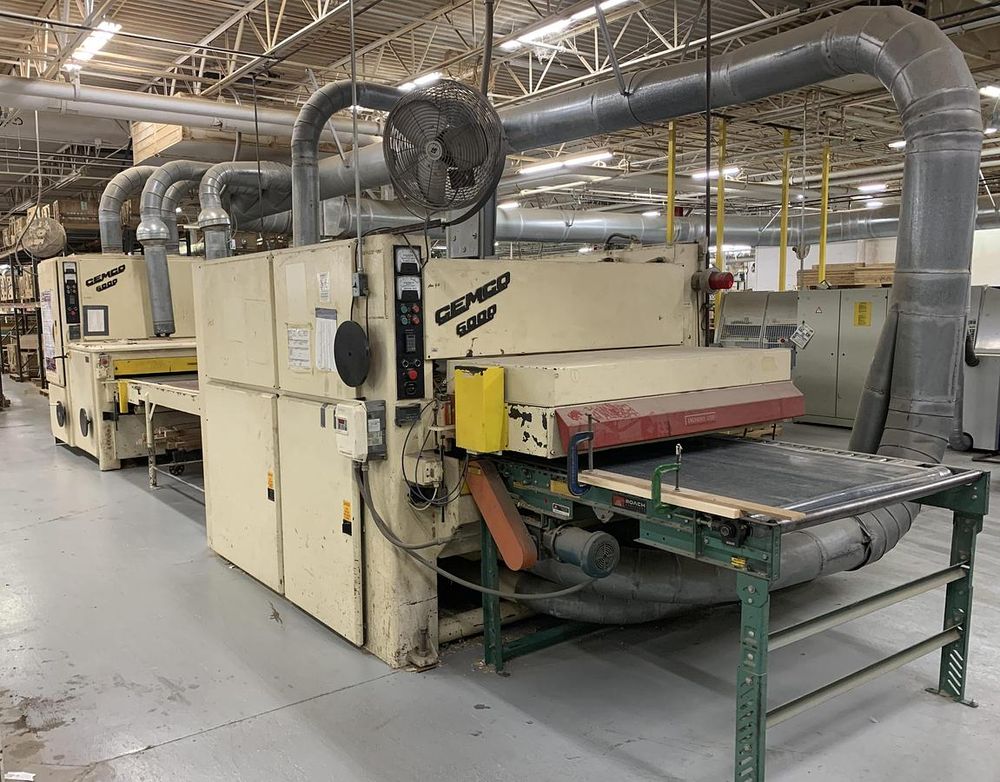

Cemco 6252

TOP AND BOTTOM PLANER-SANDER SYSTEM WITH NEWMAN "QUIETCUT" HELICAL PLANER-HEADS
(460/60/3 electrics),

Standard Specification:
- 51” x 6” working capacity
- 50 HP, 230/460/60/3, 3,600 RPM Newman Quiet-Cut planer-head
- Segmented infeed chip-breaker & outfeed pressure shoe on cutter-head
- 50 HP, 230/460/60/3 10” diam. rubber contact drum sanding head
- 103” abrasive sanding belts
- (15 to 60) ft/min. feed speed, (AC variable frequency drive)
- (0 to 6”) motorized thickness adjustment
- Electric digital ProScale, (feed conveyor bed & cutterhead position)
- (33” to 39”) constant pass-line height
- Feed conveyor cleaning brushes
- Amp meters & electronic abrasive belt tracking system
- 9,000 CFM total dust-collection
- (8) 9” & (2) 8” diameter dust ports total
- Includes 5’ long power infeed & 8’ long transfer belt conveyors
- Includes planer-head grinding accessories & electric disconnects
- 36’ long x 9-1/2’ wide x 7’ tall approx. overall machine dimensions
- System weighs approx. 32,000 lbs.
