Cement Silo

Cement Silo

1. Composition
A cement silo (also known as a cement tank) consists of the following components: silo body (steel structure part), ladder, guardrail, feeding tube, dust collector, pressure safety valve, high and low level meter, discharge valve, and other accessories.

2. Structure

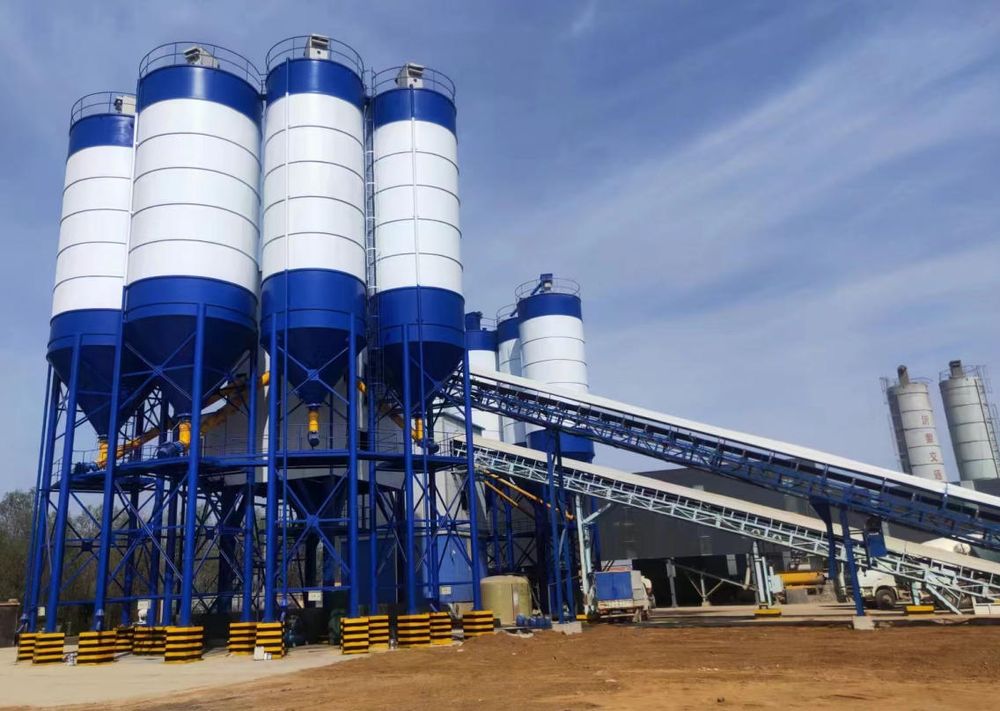

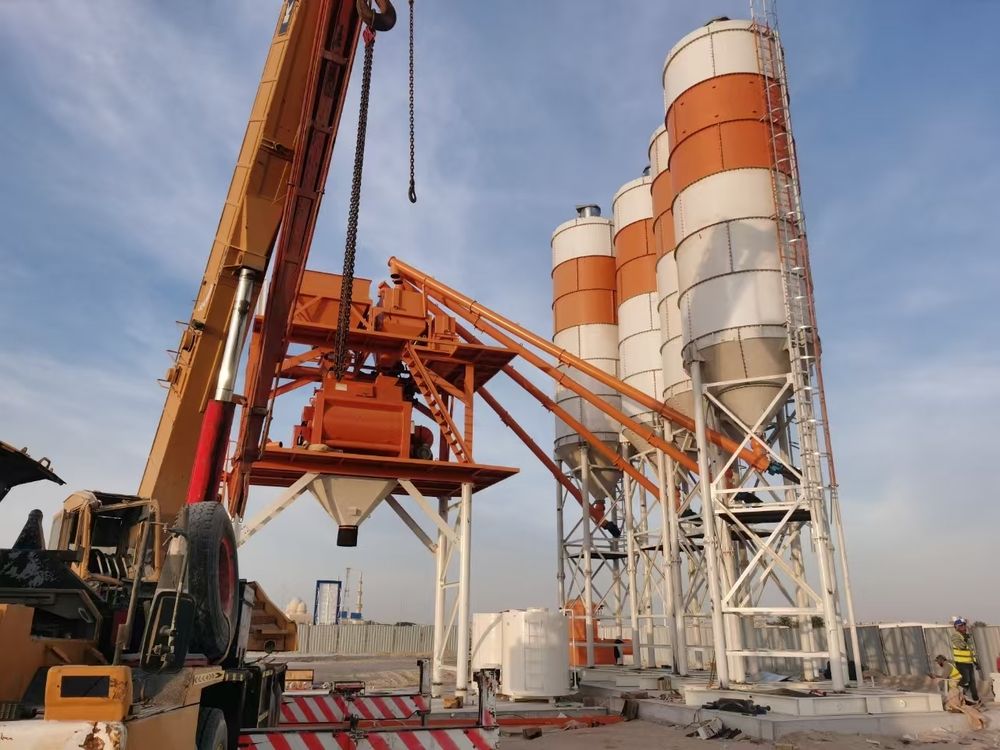

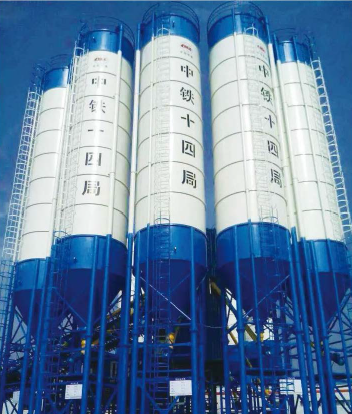

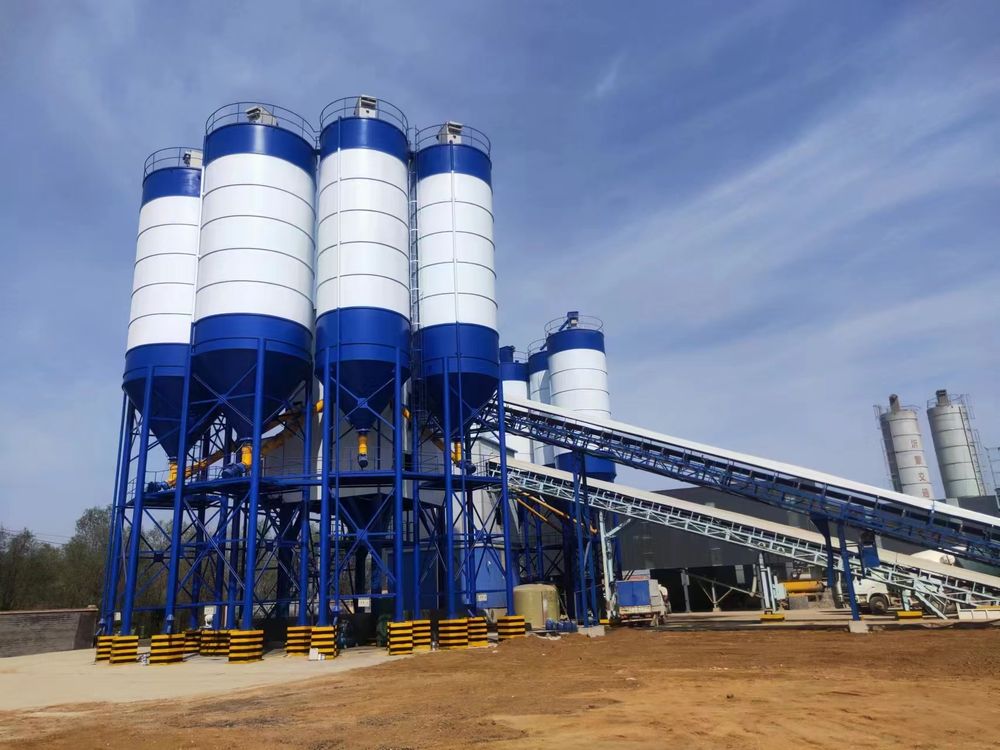

The cement silo (cement tank) features a cylindrical structure. Its bottom is supported by four round tube legs. The entire silo adopts a welded steel structure. A dust collector and a pressure safety valve are installed at the top.

3. Specifications of Bolted Cement Silo
The parameters of bolted cement silos are shown in the table below:

No. Name & Specification Diameter Thickness of Plate Legs Weight(t) Height of Silo Body Total Height Height of Legs Container Quantity Remarks
1 50T 3.16m 5.4.3mm 219×5.5 4t 5.1m 13.5m 4.2m one 40′ GP If leg height ≤ 3m, one 20′ GP is usable
2 100T 3.16m 5.4.3mm 219×5.5 6t 9.3m 19m 4.2m one 40′ GP If leg height ≤ 3m, one 20′ GP is usable
3 150T 3.6m 6.5.4mm 219×9 10t 10.7m 21m 4.2m one 40′ GP –
4 200T 4.5m 6.5.5mm 273×7 13t 9.3m 19m 4.2m one 40′ HQ –
5 250T 4.5m 6.5.5mm 273×9 15t 10.7m 21m 4.2m one 40′ HQ –
6 300T 5m 8.6.5mm 325×9 19t 10.7m 21m 4.2m one 40′ HQ –
7 350T 5m 8.6.5mm 325×10 22t 11.7m 22m 4.2m one 40′ HQ –
8 400T 5.5m 8.6.5mm 426×10 24t 12m 23m 4.2m two 40′ HQ –
9 500T 6m 8.6.5mm 426×12 26t 12m 23m 4.2m two 40′ HQ –
