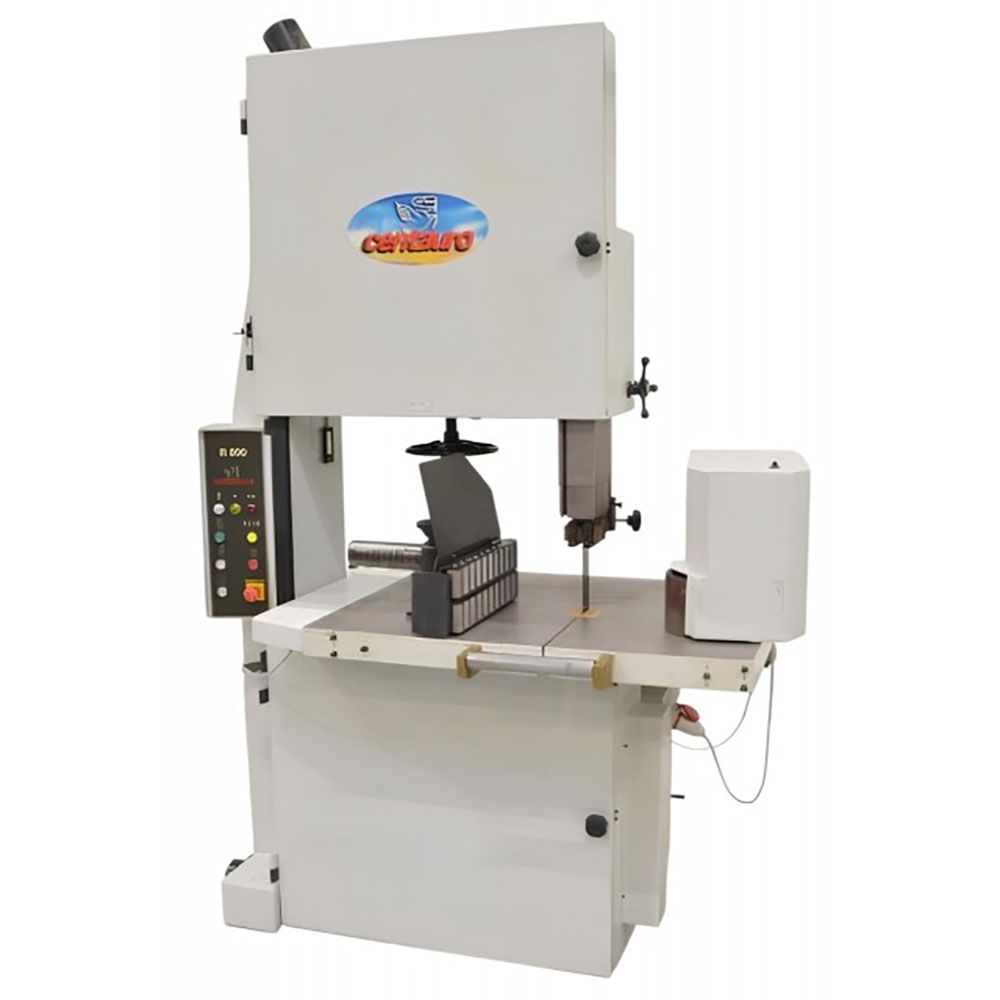

Centauro R800

RIGGING BAND SAW WITH HEDGEHOG FEED & ROLLER FEED TABLE
MAKING CAPACITIES:
- Max. cutting height: 400 mm
- Max. cutting width when ripping (between blade and guide): 200 mm
- Tiltable table 0 to 15°
- Handwheel rotation speed: 680 rpm
- Blade speed: 28.5 m/s

MACHINE COMPOSITION:
- Handwheels: 75 x Ø800 mm
Full casing covering both handwheels
- Recommended blade:
Width: max. 80 mm
Length: 5380 to 5530 mm
- Blade tension indicator
- Blade guard Enveloping and telescopic, with adjustable height
- Smooth cast iron table: 1060x800 mm
Table height from ground: 970 mm
Equipped with a 0.5 kW spike feeder
- 10 feed speeds
- Toothed wheel Ø200xH 240 mm

MACHINE FEATURES:
- Main power supply: 400 V, three-phase 50 Hz
- Total installed power: 15.5 kW (hp) A
Pneumatic handwheel braking
- Pneumatic supply: 6-8 bar
- Upper suction Ø100 & lower suction Ø120 mm
- CE marked
- Padlockable disconnect switch, front and rear mushroom stops
- Dimensions (LxWxH): 1600x1100x2400 h. mm
- Weight: 820 kg
