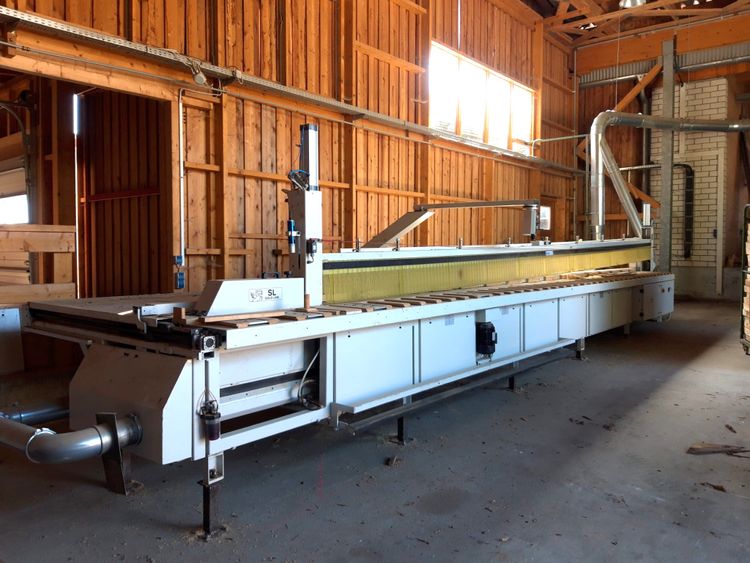

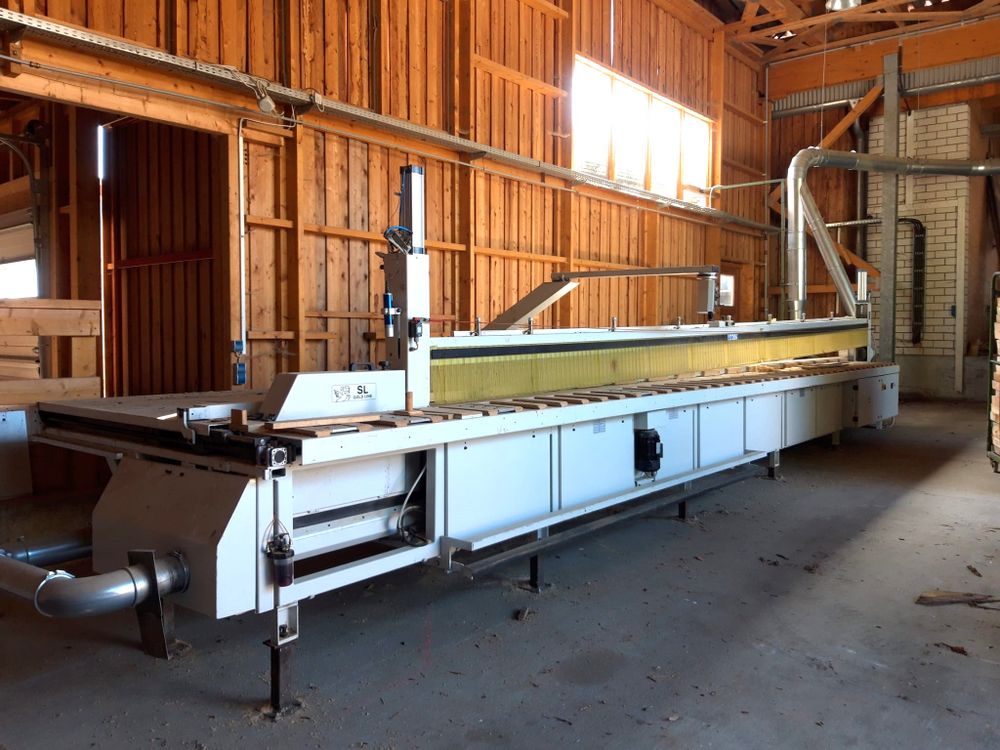

Centauro SLG 8000 Rip Saw

Maximum cutting length: 8050 mm
Maximum cutting width: 1600 mm
Maximum cutting height: 160 mm
Working height of the table from floor: 870 mm
Maximum saw blade diameter: 550 mm
Saw blade holder diameter: 30 mm
Motor with motor brake: 11 kW
Saw blade feed motor: 1.1 kW
Saw blade feed speed: variable from 0 to 80 m/min.
Feed speed stepless variable via rotary switch
Saw blade return speed: 80 m/min.
Motor for stop adjustment: 1.1 kW
Power consumption (electrical) 12.85 kW
Air consumption 6 bar (300 l/min.)
Diameter of exhaust pipe connections: 2 x 130 mm, 1 x 200 mm
Operating noise 97.2 dB (A)
Dust emission 0.18 mg/m³
Electronic control unit at head height with screen and controls.
Fully automatic cutting program setting through 4 operating modes: Absolute, Incremental, Repeat Cut, and Cut List.
Optimization of axis movements (front sash and saw blade).
Precise and fast saw blade height adjustment (3 positions) allows
adjustment of the cutting speed depending on the material height and cutting width.
The electronic control unit ensures the best cutting quality.
Selector switch with three saw blade heights: 60 mm, 100 mm, and 160 mm
Cutting process started with a long foot switch
With laser light for material optimization
With pressure bar for pneumatic workpiece clamping
Ventilated curtain
External dimensions/space requirements: L 10600 mm x W 2500 mm x H 1962 mm
Weight approx. 4000 kg
