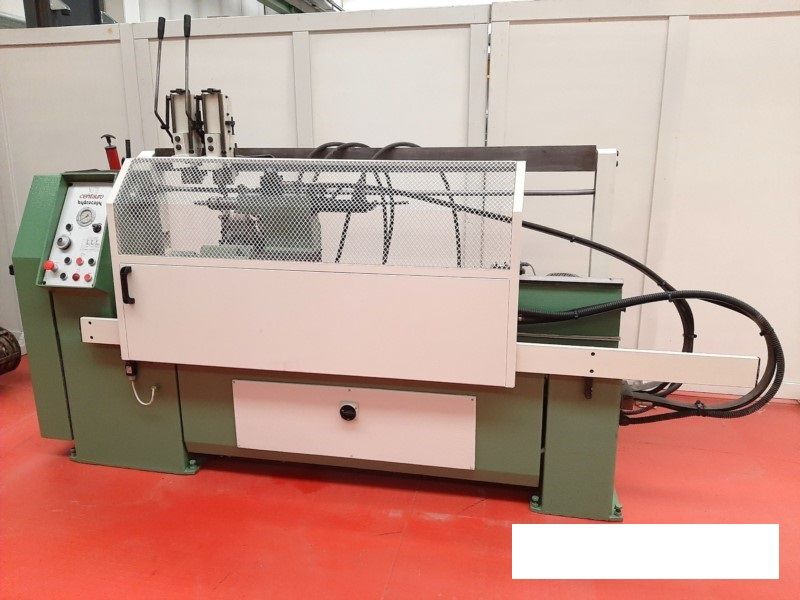

Centauro T3-130

Hydraulic copying lathe for wood, stairs, frames, chairs, tables, etc.
Automatic cycle turning system with one copier programmable to perform one or two passes
Hydraulic copying unit with touch probe
Max distance between centres mm 1300
Height of centres on pallet mm 226
Max diameter mm 250
Tailstock sleeve diameter mm 60
Tailstock sleeve stroke mm 100
Carriage feed speed mt/min 0/6
Carriage return speed mt/min 7,33
Spindle rotation speed rpm 900/1500/1800/2250/3000/4500
Spindle motor power Hp 5
Installed power Kw 4,8
Overall dimensions mm 3520 x 1190 x 1680 h
Weight kg 1000
