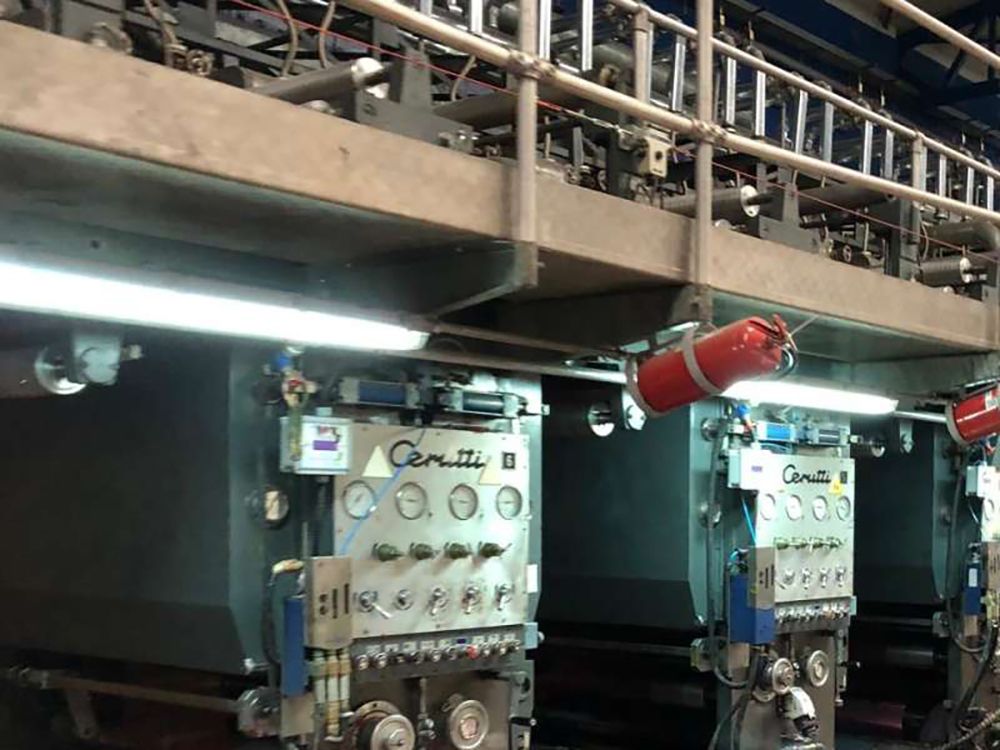

Cerutti 28R 1200 mm

Rotogravure printing press
Year 1982
Electrical retrofit 2012
Printing cylinder or sleeve system Printingsleeve
Number of colours 9
Max. web width 1200 mm
Min. - Max. printing repeat 480 - 1000 mm
Max. mechanical speed 250 m/min
Materials:
MDPE min. 30 μ
PE: 12 - 30 μ
PP: 18 - 30 μ
Paper/aluminum laminate: max 180 g/m²
Paper: max 180 g/m²
Plain aluminum: min 9 μ
Unwind type Automatic turret
Max. unwind reel diameter 800 mm
Rewind type Automatic turret
Max. rewind reel diameter 800 mm
Drying type Thermic oil
Drying source included Yes
Extended drying Yes, units 7, 8 and 9
Web guide(s) Yes, FIFE
Video camera Yes, Grafikontrol Matrix (2016)
Corona treater Yes, Softal
Viscosity control Yes, Gama VIS-G25 (2012)
Turningcross Yes, before unit 9
Recent investments:
2012: Complete electrical retrofit
2012: New viscosity control Gama VIS-G25
2016: New Register system Grafikontrol CR33
2016: New Grafikontrol Matrix camera
Available from
Now
Machine can be seen in production
Yes
