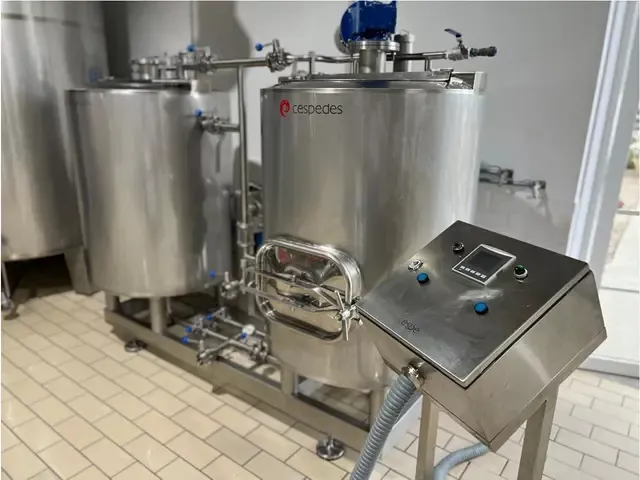

Cespedes 2,5 hl Brewhouse

Capacity: 250 L per batch (brewhouse); fermentation tanks 500 L each
Brewhouse type: 2-vessel system (boil kettle/whirlpool + lauter tun/mash filter)
Heating: Electric resistances with oil-based thermal transfer (2×18 kW)
Plate heat exchanger capacity: 40 kW, AISI 316 plates
Fermentation:
1 × 500 L isobaric fermentation tank (4.5 bar)
2 × 500 L atmospheric fermentation tanks
Control: Touchscreen panel with recipe management, temperature control for two tanks, emergency stop

Scope of Delivery
Brewing kettle & whirlpool tank | Cespedes | – | 2016 | 250 L, electrically heated, oil-based heat transfer Lauter tun & mash filter | Cespedes | – | 2016 | 250 L, with agitator, false bottom, CIP
Plate heat exchanger | Cespedes | UPF-32/12 | 2016 | AISI 316, 40 kW capacity
Plate heat exchanger | Cespedes | UPF-32/12 | 2016 | AISI 316, 40 kW capacity
Control panel | – | – | 2016 | Touchscreen, recipe control, temperature control
Wort transfer pump | – | – | 2016 | With electronic speed control
Particle filter | – | – | 2016 | Stainless steel AISI 304, 0.2 mm slot size
Sight glass | – | – | 2016 | DN40, stainless steel AISI 316
Connecting pipes | – | – | 2016 | DIN sanitary valves, stainless steel
Fermentation tank (isobaric) | Cespedes | – | 2016 | 500 L, 4.5 bar, isothermal, double-walled
Fermentation tanks (atmospheric) | Cespedes | – | 2016 | 2 × 500 L, isothermal
