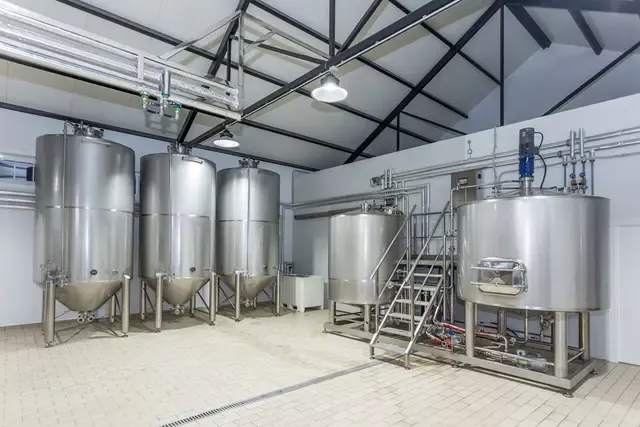

Cespedes Brewhouse

Cespedes, Anfara Sommer, Braumanufaktur Werk Brewhouse

Technical data
Capacity: 1,500 L per batch (brewhouse), 3 × 3,000 L fermentation tanks
Formats: Bottles and cans (330 ml, 440 ml, 500 ml)
Brewing system: Steam-heated, fully stainless steel
Filler: 6-head semi-automatic isobaric filler (bottles), modular semi-automatic filler and capper (cans, approx. 150 cph)

Scope of Delivery
Brewing kettle / whirlpool tank | Cespedes | - | 2018 | 1,500 L usable, double jacket, steam heating, fully insulated, stainless steel AISI 304
Mash/lauter tun | Cespedes | - | 2018 | 2. 000 L usable, motorized stirrer, insulated, stainless steel AISI 304
Hot water tank (HLT) | Cespedes | - | 2018 | 3,000 L, insulated, with heating jacket
Fermentation/storage tanks (3 pieces) | Cespedes | - | 2018 | 3. 000 L usable, pressure vessel up to 3 bar, insulated, cooling jacket
Control system | Cespedes | - | 2018 | Recipe management, temperature control, frequency converter
Work platform with ladder | Cespedes | - | 2018 | Stainless steel, non-slip, with railing
Connecting bench + piping | Cespedes | - | 2018 | Stainless steel, hygienic DIN valves, incl. Helicoidal pump
Plate heat exchanger | - | UPF34/70 | - | stainless steel, for wort cooling
Inline particle filter | - | - | 2018 | stainless steel AISI 304, slot width 0.2 mm
Sight glass | - | - | - | stainless steel AISI 316, hygienic inline inspection window
Steam generator | Anfara | AV-300 | 2018 | 300 kg/h, 5 bar, Oil burner, CE-certified
CIP system | - | CDXM 70-5 | 2021 | flow rate 3.0-9.6 m³/h, 1.5 kW motor
Semi-automatic bottle filler | Cespedes | ISO-6 | 2016 | 6 filling heads, isobaric, stainless steel
Semi-automatic can filler + seamer | Braumanufaktur Werk | Fillmatic | 2021 | modular, formats 330-500 ml, approx. 150 cans/h
Malt mill | Sommer Maschinenbau | Maltman | 2019 | up to 1,500 L batches, 2-roller mill
Buffer/intermediate tank | - | - | - | 565 L
