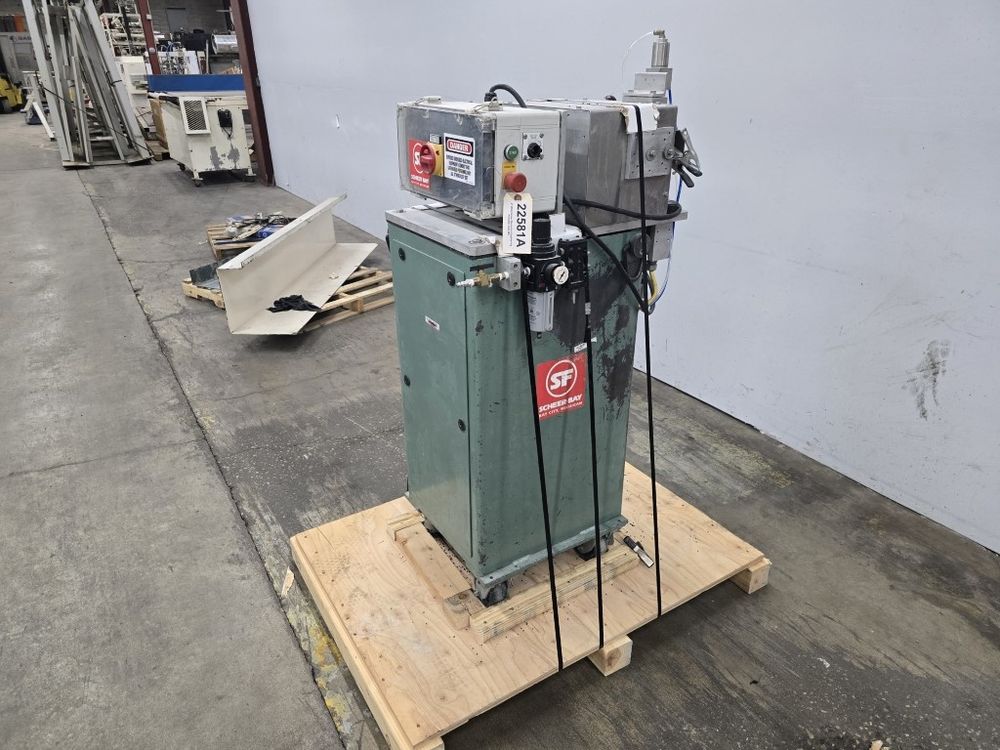

CF Scheer SGS-50E

1.5" Wide MAAG/Sheer Bay Strand Pelletizer SGS-50E, 2 HP
8 Strands, 20 Knife Carbide Inlay Helical Style Rotor
46" Infeed Height
2" x 2" Discharge, 32.75" Clearance
275 LBS/HR Throughput Dependent Upon Material Per Manufacturer
1 Metal, 1 Rubber Pull Roll
2 HP Reliance Electric Duty Master AC Motor, Frame FD145T
Motor Electrical: 230/3/60, 5.4A
1725 RPM
Allen Bradley Powerflex 40 VFD, Cat. No: 22B-A8P0N104
Input: 200-240/1/48-63Hz, 18A,
Output: 0-230/3/0-400Hz, 8 Continuous Amps, 60 Sec Ovld: 12 Amps
230/1/60, 8.2A
Control Enclosure With Main Disconnect, Cutter Speed Pot, and Start / E-Stop
Approximate Dimensions: 30" L x 24" W x 57" H
