CF2 350 350 mm

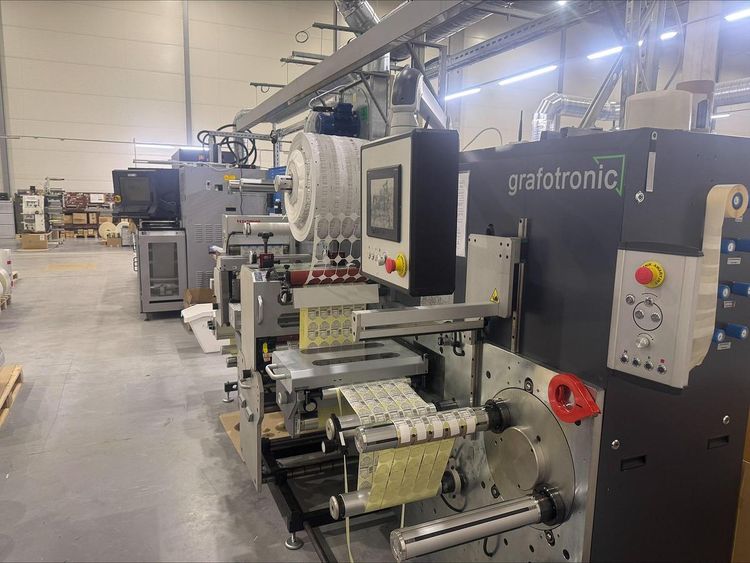

Grafotronic CF2 350 Compact Digital Finishing Line
Max. web width : 350 mm
Maximum speed on web : 200 m/min
Maximum speed on die cut : 50 m/min
Drive system : Servo driven
Max. unwind diameter : 750 mm
Max. rewind diameter : 600 mm
Corona Treater. Vetaphone. VE1A
Single sided web cleaner. Kelva CWCS
Single flexographic print station for UV / IR print, full rotary. (GEW cartridge)
Full Lamination, self wound, with carrier rewind and super lamination
Coating Roller. Air cylinder with rubber sleeve incl. gear and rings
Printing Cylinder 10-14 inch repeat. Incl. gear and rings
Speed upgrade of Semi Rotary die cutting to 70 m/min maximum
Grafotronic die pressure system
Razor Blade slitting station incl. 3 blades
2 x additional razor blade holder and blade
Manual 6E slitting knifes
Under/back scorer incl. 2 knives
Semi-automatic turret, 420 mm out- / 250 mm inside rew. (600 mm on single mandrel IN/OUT)
Autogrip for easy cutting and autogrip for ready rolls (semi-automatic turret)
2 x additional 25mm and 40mm Q-SHAFT
Jog pedal
