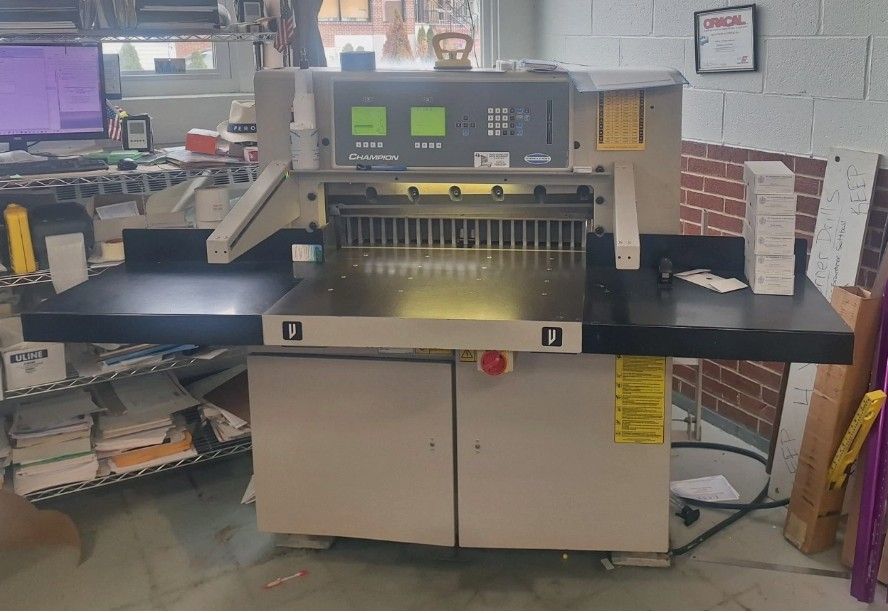

Challenge Champion 305

Features & Specifications:
DIMENSIONS:
- Cutting Width: 30.5"
- Clamp Opening: 3.5"
- Min Cut: 3/4"
- Table in front of Knife: 18.5"
- Space Behind Knife: 30.5"
- Table Height: 36"
- Overall Dimensions: 57.75" x 78.5" x 60"
- Weight: 1,855 lbs

- Cutting Width: 30.5 inches (770 mm)
- Clamp Opening: 4 inches (102 mm) without false clamp plate
- Maximum Clamping Force: 5,000 lbs (2,200 daN)
- Minimum Cut: 3/4 inch (19 mm) without false clamp; 1-7/8 to 2 inches with plate
- Electrical Power: 5 H.P. motor; requires 208/230 V, 60 Hz, 3-Phase power
- Construction: Rugged cast-iron and steel
