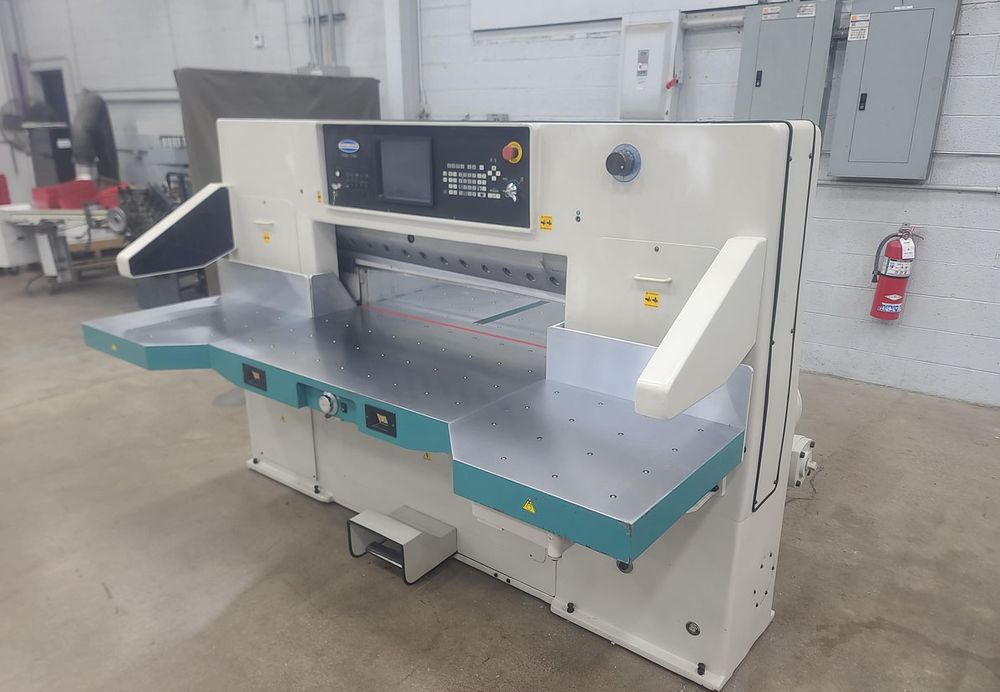

Challenge, Daeho DYM II-1160

Industrial Paper Cutter
Features:
AC servomotor with ball screw and linear guide
Adjustable hydraulic clamping pressure
Hard-chromed air cushion table
Optical cut-line indicator and table light
Safety systems including two-hand cut control and infrared safety light curtain
Easy knife change system and shear bolt protection

Specifications:
Forward Speed: 140
Backward Speed: 160
Knife Life: 3,000
Maximum cutting width: 45.7″ / 1160 mm
Maximum clamp opening: 6.5″ / 165 mm
Feed depth maximum: 45.7″ / 1160 mm
Minimum cut depth: 1.2″ / 30 mm
Cutting speed: 48 rpm
Drive system: double-end pull knife
Backgauge speed: max ~7.9″/sec, min ~0.39″/sec
Construction: cast iron and steel frame
Safety: infrared light curtain and two-hand cut control
Power Requirements: 230V, 60Hz, 3Ph, 4.7kw
