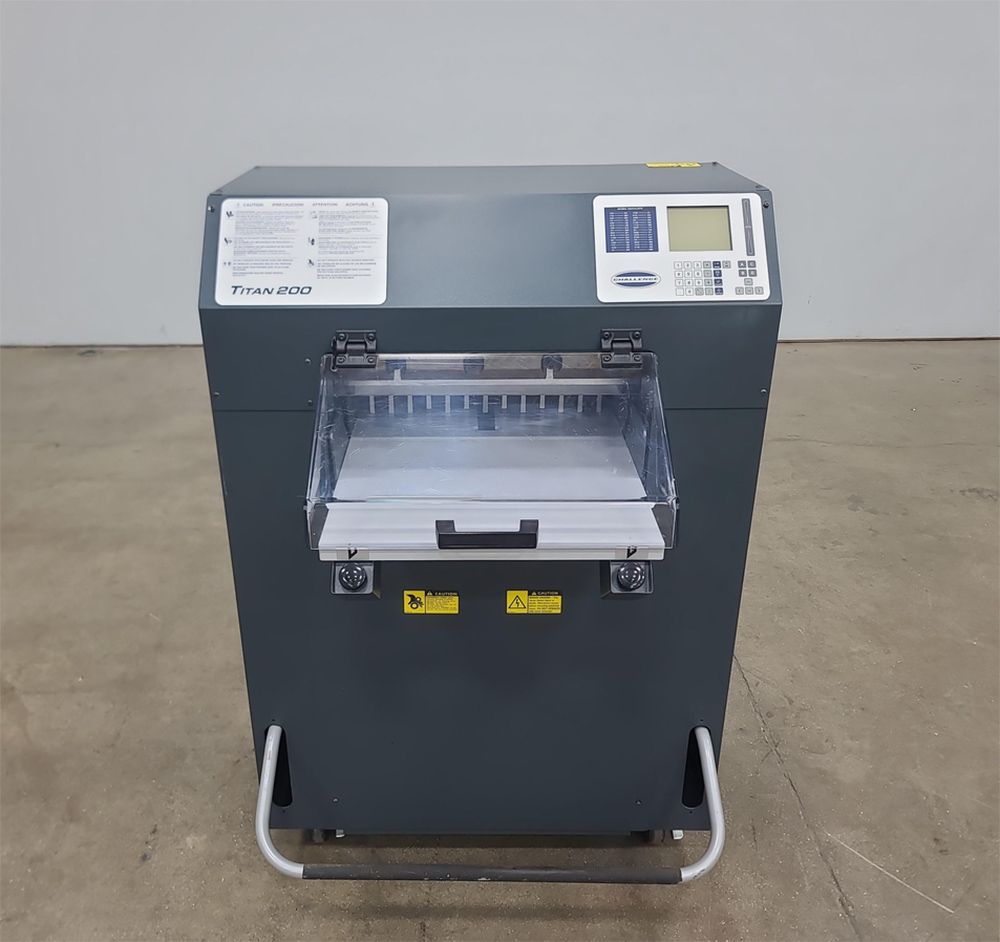

Challenge Titan 200

Hydraulic Programmable Paper Cutter w/ Tilt Shield
Included Components:
Challenge programmable digital control system
Tilt safety shield
Rear waste / chip table
Foot treadle
Heavy-duty operator push bar

Features:
20in hydraulic programmable paper cutter
Hydraulic knife operation
Hydraulic clamp with manual clamp capability
Motor-driven programmable backgauge
Digital touchscreen control panel
Programmable memory for repeat cutting jobs
Tilt safety shield for operator protection and visibility
Precision backgauge positioning
Rear waste / trim collection table
Heavy-duty welded steel construction
Emergency stop switch
Foot treadle operation
Single phase electrical

Specifications:
Cutting Width: 20in / 50.8cm
Maximum Cut Depth: 20in / 50.8cm
Minimum Cut Without False Clamp Plate: 1/2in / 13mm
Minimum Cut With False Clamp Plate: 1-7/8in / 48mm
Maximum Clamp Opening Without False Clamp Plate: 3-1/4in / 8.3cm
Maximum Clamp Opening With False Clamp Plate: 3in / 7.6cm
Table Space In Front of Knife: 15-1/4in / 39cm
Table Space Behind Knife: 20in / 51cm
Maximum Overall Height: 53in / 135cm
Overall Width: 36in / 91cm
Overall Length: 49-5/8in / 126cm
Approximate Net Weight: 795 lbs / 361kg
Approximate Shipping Weight: 920 lbs / 418kg
Hydraulic Pump: 1-1/2 HP
Electrical: 208/230V, 12A, 60Hz
Phase: 1 Phase
Recommended Circuit: 15A
