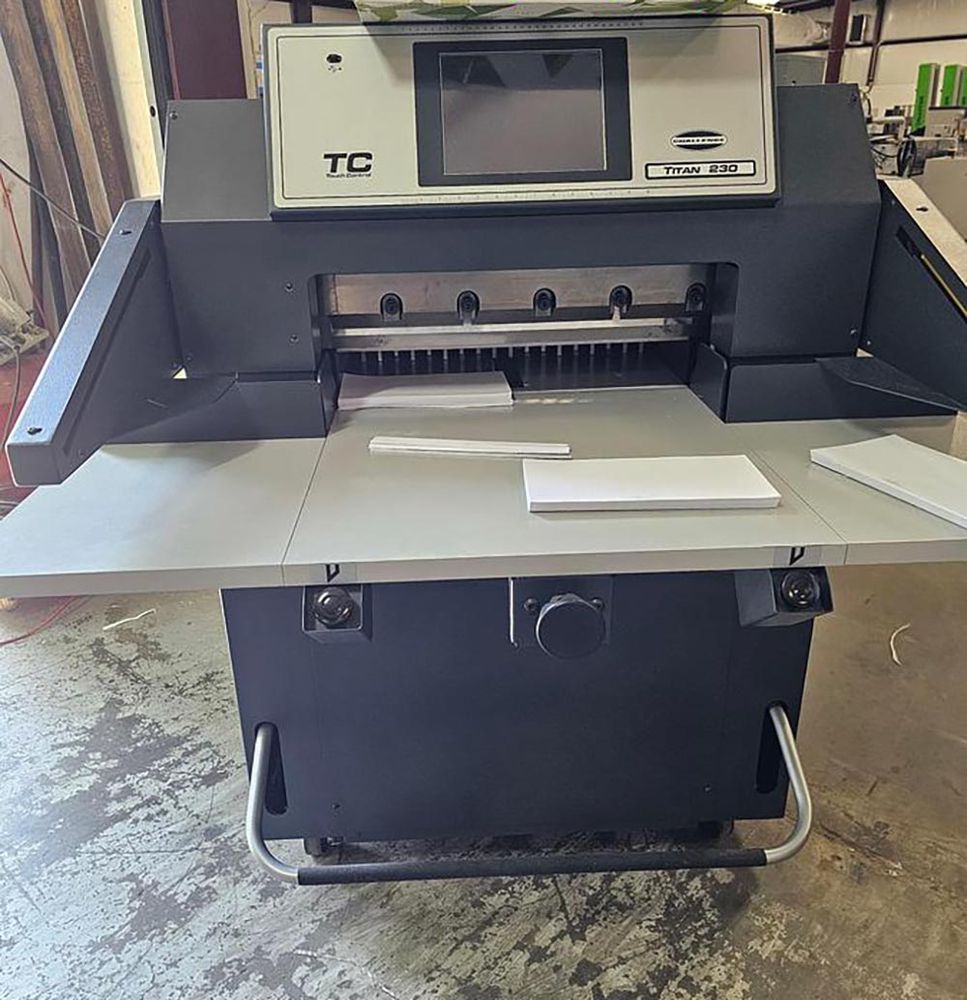

Challenge Titan 230 TC

Condition Used
Maximum Cutting Width 23"
Minimum Cut w/o False Clamp Plate 1/2"
Minimum Cut w/ False Clamp Plate 1-7/8"
Maximum Cut Depth 24"
Clamp Opening w/o False Clamp Plate 3-1/4"
Clamp Opening w/ False Clamp Plate 3"
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered
Dimensions 53" H x 50" W x 66" L
Pass through opening (w/o beams & switch) 39"
Pass through opening (w/o table & treadle) 29"
Weight 1120lbs.
Electrical 208/230V Single Phase 12Amps

Features:
Touch Control Operator Screen
Fully hydraulic cutting and clamping
Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage
Bright red LED line light is easy to see and needs no future replacement
Optional electronic clamp pressure adjustment
