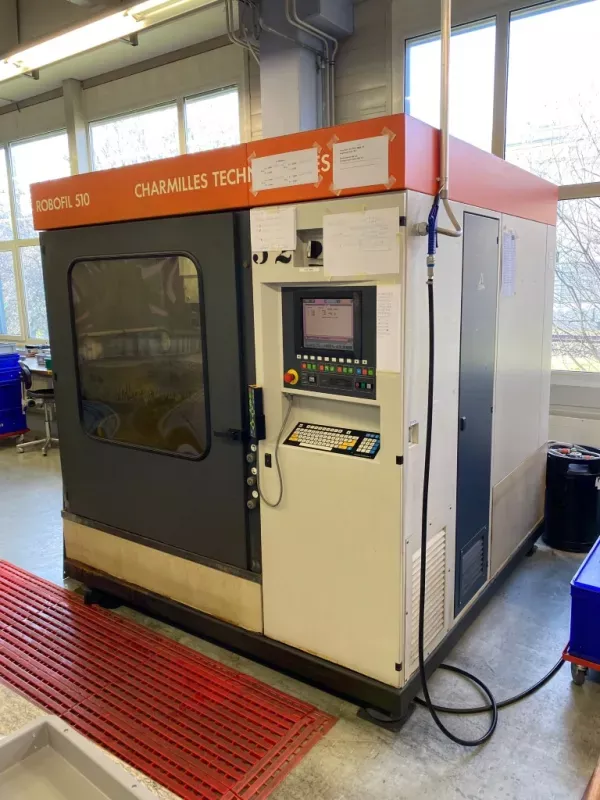

Charmilles Technologies ROBOFIL 510

X-axis travel: 700 mm
Y-axis travel: 400 mm
Z-axis travel: 400 mm
U-axis travel: 700 mm
V-axis travel: 400 mm

Measurement resolution: 0.5 μm
Manual maximum speed: 15 mm/s
Control cabinet generator type: Isopulse
Max ambient temperature: 30°C
Software storage time: 100 hours
Maximum loading time: 60 hours
Floppy disk type: 3 ½"
Number of storable programs: 112
Control cabinet dimensions: 1800 x 650 x 1000 mm
Cooling air: 800 m³/h at 30°C
Maximum discharge current: 45 A
Graphic color screen: 14
16-bit microprocessor: 3
Machine bed: polymer concrete
Machine dimensions: 2100 x 2050 x 2230 mm
Machine weight: 3800 kg
Access door dimensions: 1220 mm
Max workpiece dimensions: 1200 x 700 mm
Max workpiece height: 400 mm
Max workpiece load: 1000 kg
Wire diameter: 0.1 to 0.3 mm
Wire speed: 0–15 m/min adjustable
Mechanical tensile stress: 0–30 N adjustable
Clearance angle: 0°–30° adjustable
Maximum threading height: 300 mm
Automatic threading (2 mm): Yes
Automatic rethreading: Yes
Wash: K125 (4 kg)
Wash: K160 (8 kg)
Wash: K200 (16 kg)
Deionization: Resin mixture, 20 l
Container type: Welded waterproof steel sheet
Dielectric dimensions: 2030 x 1420 mm
Dielectric capacity: 450 l
Filter system: 10
Flushing pressure: 0–11.5 bar
Mains frequency: 50 Hz
Cos. PHI: 0.8
Three-phase input voltage: 380 V / 400 V
Permissible fluctuations: +10% to -15%
Permissible micro-interruptions: 4 ms
Connected load: 10 KVA
Inrush current: 10 KVA
Minimum pressure difference between inlet and outlet cooling source: 2 bar
Maximum inlet pressure: 5 bar
Maximum throughput: 25 l/min
Air pressure range: 6–7 bar
Air performance: 1 l/min
Permissible ambient temperature: 20°C ± 1°C
Permissible humidity: 40–80%
Noise level: 72 dB
