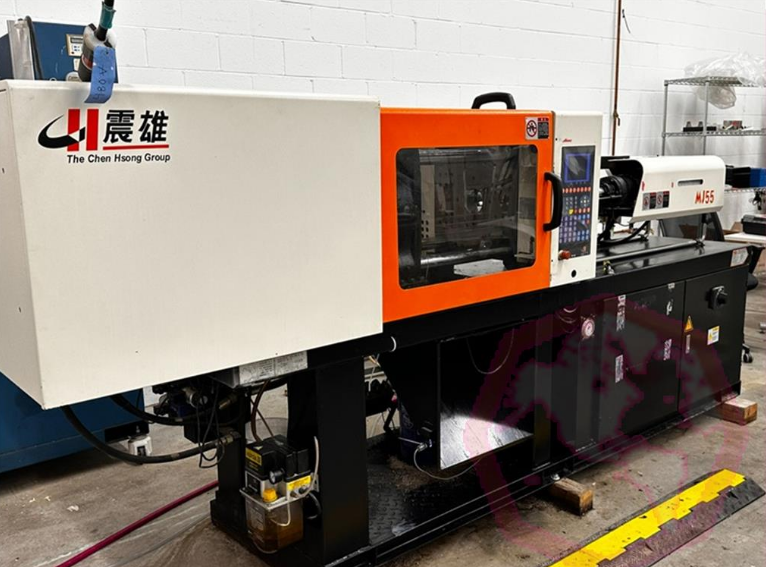

Chen Hsong MJ55 61 T

Shot Size 2 oz.
Platen Size 17.7" x 17.7"
DBTB 12.2" x 12.25"
Daylight Max 33"
Screw Diameter: 25 mm
Max Screw Speed: 240 rpm
Screw Stroke: 130 mm
System Pressure: 175 kgf/cm2
Pump Motor Power: 11 kW (Servo Drive)
Heater Band Electrical Load: 5.2 kW
Temperature Control Zones: 3 + 1 (barrel plus nozzle)
Oil Tank Capacity: 130 Liters (approx. 34 gallons)
Machine Dimensions (L x W x H): 3.4 m x 1.1 m x 1.8 m (approx. 11.1 ft x 3.6 ft x 5.9 ft)
Total Machine Weight: 2.0 metric tons (approx. 4,400 lbs)
