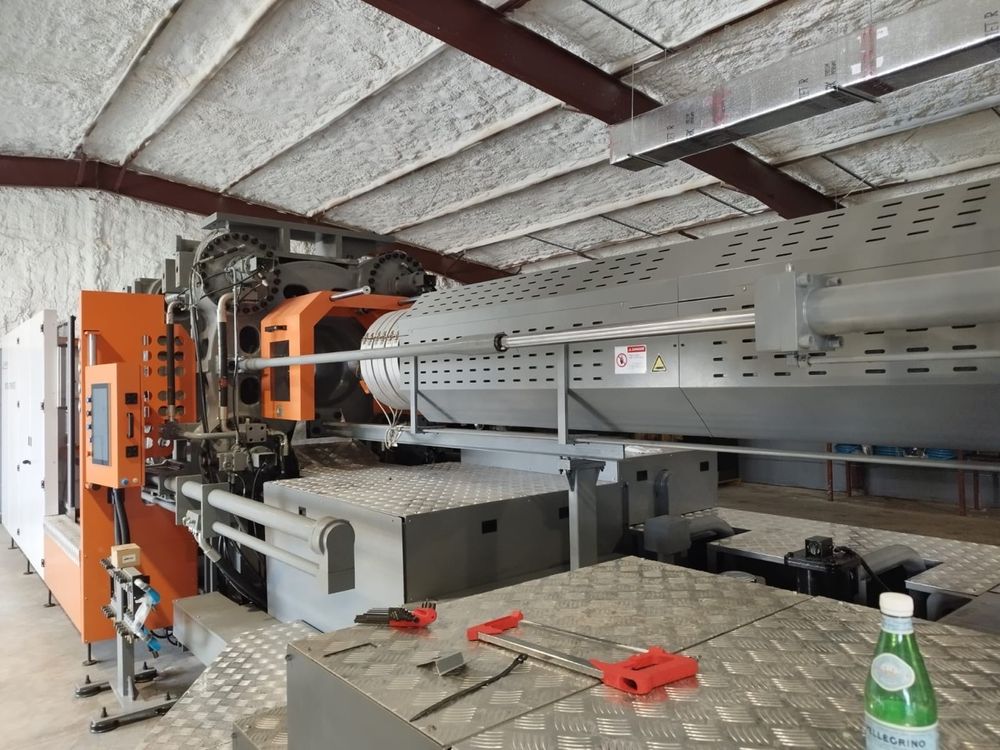

Chen Hsong SM700-TP-SVP/2(D2) 770 T

CHEN HSONG SM700-TP-SVP/2 (D2) SUPERMASTER TP SERIES
770 US Tons, Two-Platen Injection Molding Machine
High-Performance, Energy-Efficient and Space-Saving design
Low-Hours Unit.
This is a “true Tow-Platen” machine, offering smaller footprint than
traditional toggle machines while providing a massive opening stroke.
Perfect to manufacture plastic pallets and more.
It is equipped with the SVP/2 Servo-Drive system for energy efficiency.
Key Value Addition: Tie-Bar Pulling System
The machine features a Power Tie-Bar Retraction system on the operator side.
Benefits: allows for seamless side-loading of oversized molds and
drastically simplifies platen / mold maintenance
Advantage: perfect for facility with low ceiling heights or limited overhead crane access

Other features:
– UL certified
– Add-on: new heavy duty feeding hopper
– Opportunity to purchase a 480V => 400V transformer
– CLAMPING FORCE : 771 US Tons (7000 kN)
– PLATEN SIZE : 59” x 59” (1,500mm x 1,
– OPENING STROKE : 47.24” – 74.80
– SCREW BARREL : 225mm S
– CONTROL SYSTEM : BECKHOFF (High Speed German PLC)
– DRIVE SYSTEM : SVP/2 Servo-Hydraulic (Energy Saving)
– Length x Width x Height 52’ x 13’ x 13’ (15,845mm x 3,950mm x 3,950mm)
– Weight. 119,050 Lbs (54 Metric Ton)
– Mold maximum Weight 24,250 Lbs (11 metric Ton)
– Input Voltage 400 V – 3 Ph. + N
– Frequency 50 / 60 Hz
– Current 600A
– Load – Injection 300 kW
– Load – Plastification 267 kW
– Load – Heating 175 kW
– Shot weight / Shot Size : 39,801g (87.74 lbs) / 1,404 oz
