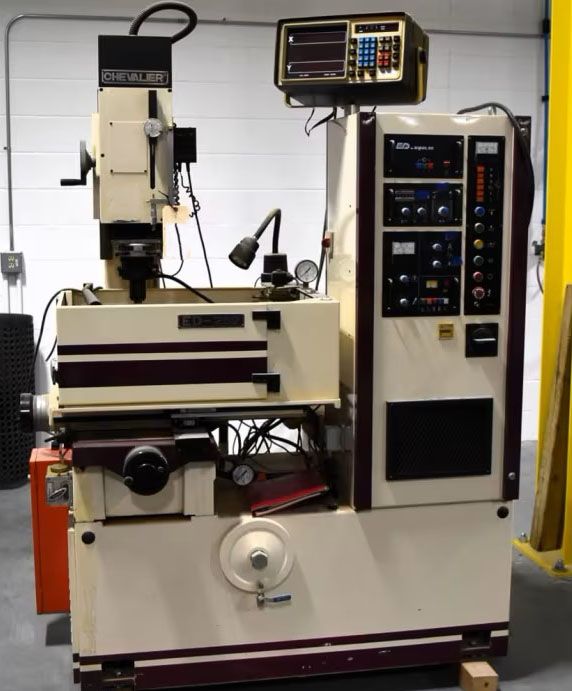

Chevalier ED-252

Chevalier ED-252, 1992, DRO, 148 HOURS USE!!
Year: 1992

TABLE DIMENSIONS ............. 23.6" X 11.8"
X-TRAVEL ..................... 11.8"
Y-TRAVEL ..................... 7.9"
QUILL STROKE ................. 5.9"
WORK TANK DIMENSIONS ......... 30.3" X 20" X 10.6"
OIL CAPACITY ................. 87 GALLONS
MACHINE HEAD STROKE .......... 7.9"
MAXIMUM ELECTRODE LOAD ....... 132 LBS.
MAXIMUM TABLE LOAD ........... 1,100 LBS.

APPROX. DIMENSIONS ........... 56"L-R x 47"D x 80"H
APPROX. WEIGHT ............... 2,500 LBS.

EQUIPPED WITH:
CHEVALIER/SURE FIRST 30 AMP POWER SUPPLY
SERVO MOTOR DOWNFEED
"QUALITY MEASUREMENTS SYSTEMS" 2-AXIS DRO
DIAL INDICATOR FOR RAM TRAVEL
"SYSTEM 3R" TOOLING SET-UP AND MAGNETIC CONTROL BOX
"X" & "Y" LEADSCREWS HAVE ADJUSTABLE COMPENSATION
SCREWS FOR BACKLASH
"SCHNEEBERGER" ROLLER BEARING SYSTEM ON ELEVATING GUIDEWAYS
AUTOMATIC FIRE EXTINGUISHER
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS/4 KVA
MACHINE CAN BE WIRED FOR OTHER VOLTAGES
MACHINE COMES WITH A MANUAL & ELECTRICAL DRAWINGS
