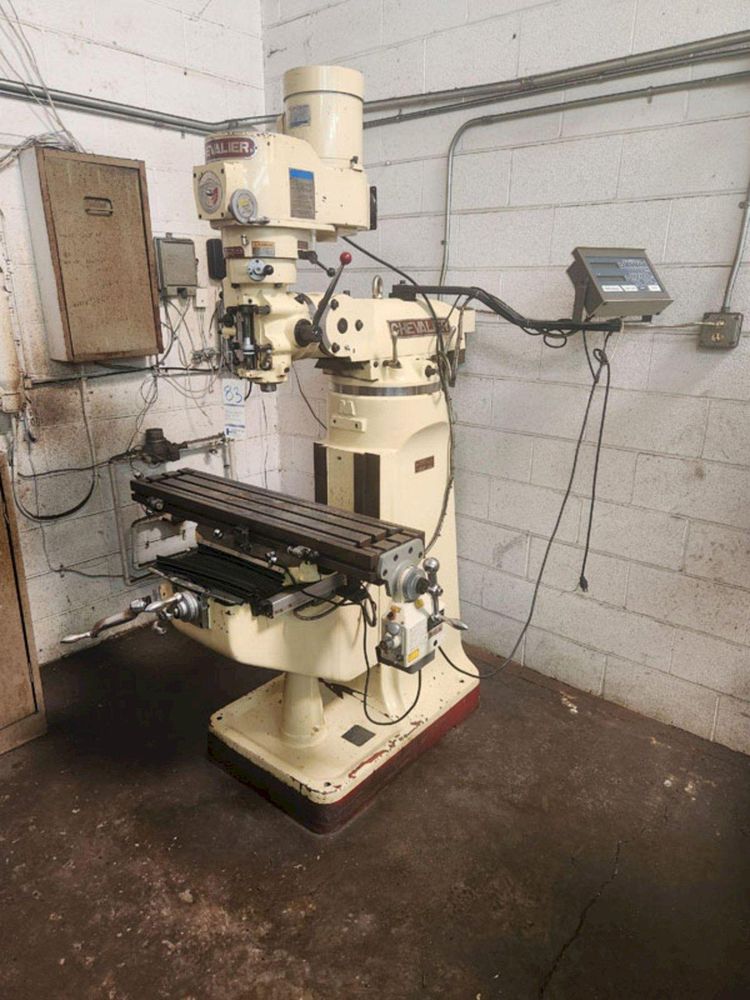

Chevalier FM-3VS Vertical 4200 RPM

Ref : 2726266-3-MT

Condition : Used

Manufacturer : Chevalier

Model : FM-3VS

Type : Vertical

Spindle Speed : 4200 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

CHEVALIER
FM-3VS

Table Size: 9" x 42"
Longitudinal Travel: 24"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Turret Rotation: 360 Degrees
Spindle Speeds, Infinitely Variable: 60 to 4200 RPM
Spindle Feeds: (3) .0015", .003", .006"
Spindle Taper: R-8
Quill Travel: 5"

EQUIPPED WITH
3 HP Spindle Motor, 230/60/3
Mitutoyo UDR-200 Two-Axis Digital Readout
Align AL-250 X-Axis Power Feed
One-Shot Lubrication
Forward/Reverse Switch

Approximate Weight: 2400 Lbs.
