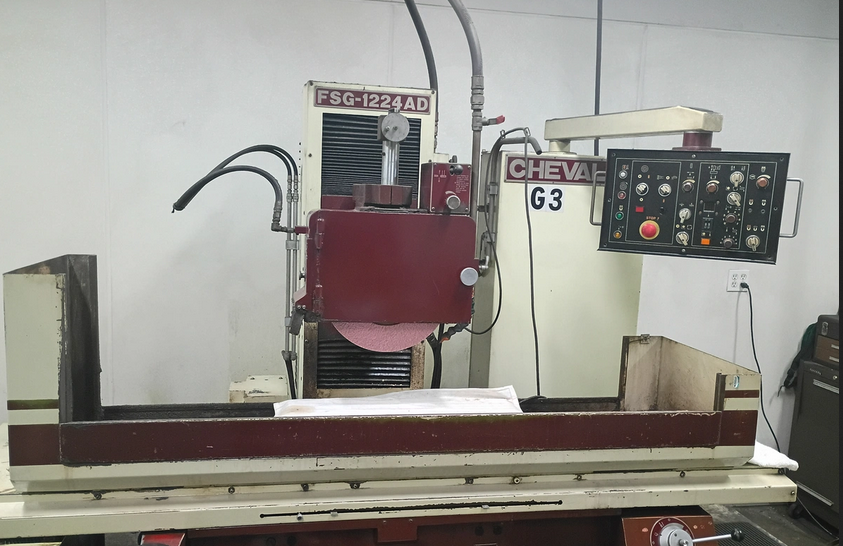

Chevalier FSG-1224AD

Table Width: 12"
Table Length: 24"
Orientation: Horizontal
Power: 5 HP
Grinding Wheel Width: 1.5"
Grinding Wheel Diameter: 12"
Max Grinding Length: 24"
Max Grinding Width: 12"
Max Distance Spindle Center to Table Surface: 24.75"
Suitable Magnetic Chuck Size: 11.75" x 23.625"
Longitudinal Travel Manual: 25.5"
Longitudinal Travel Hydraulic: 24.75"
Table Speed (Infinitely Variable): 0.16-82 fpm
Crossfeed Travel Manual: 14.125"
Rapid Travel Speed: 12.5 fpm
Automatic Intermittent: 0.125"-2"
Micro Feed per Graduation: 0.00005"
Micro Feed per Revolution: 0.005"
Wheelhead Auto Infeed: 0.00005"-0.002"
Wheelhead Rapid Travel: 8 ipm
Wheelhead Micro Feed: 0.00005"/0.0001"
Handwheel per Graduation: 0.0005"
Handwheel per Revolution: 0.05"
Spindle & Motor Directly Driven: 60 Hz / 1750 RPM / 5 HP
Grinding Wheel: 14" x 2" x 5"
Packing Dimensions L x W x H: 97" x 68" x 87"
Machine Weight: 4,520 lbs.
Voltage: Prewired to 230V
Magnetic Chuck Included
3 Axis Automatic Operation
