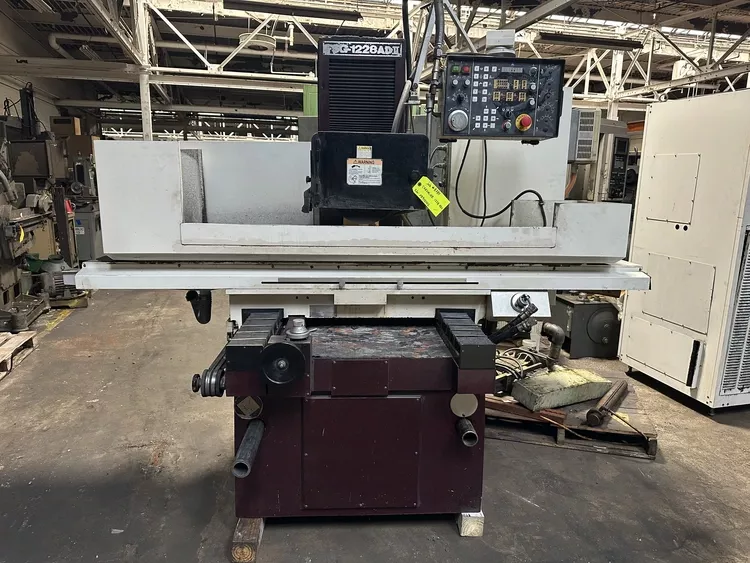

Chevalier FSG 1228 ADII

Table size: 12" x 24"
Fine line magnetic chuck: 12" x 24"
Grinding capacity: 12" W x 28" L
Table to spindle height: 24.75"
Longitudinal travel: 29.5"
Longitudinal speed: 16–82 FPM (variable)
Cross travel: 12"
Cross travel feed: 1/8"–2" auto increment
Incremental downfeed: 0.00005"–0.002" auto increment
Grinding wheel size: 14" OD x 2" W x 5" ID
Table capacity: 946 lbs
Spindle motor: 5 HP
Machine weight: 4700 lbs

Spark out
Roller bearings
Coolant system
