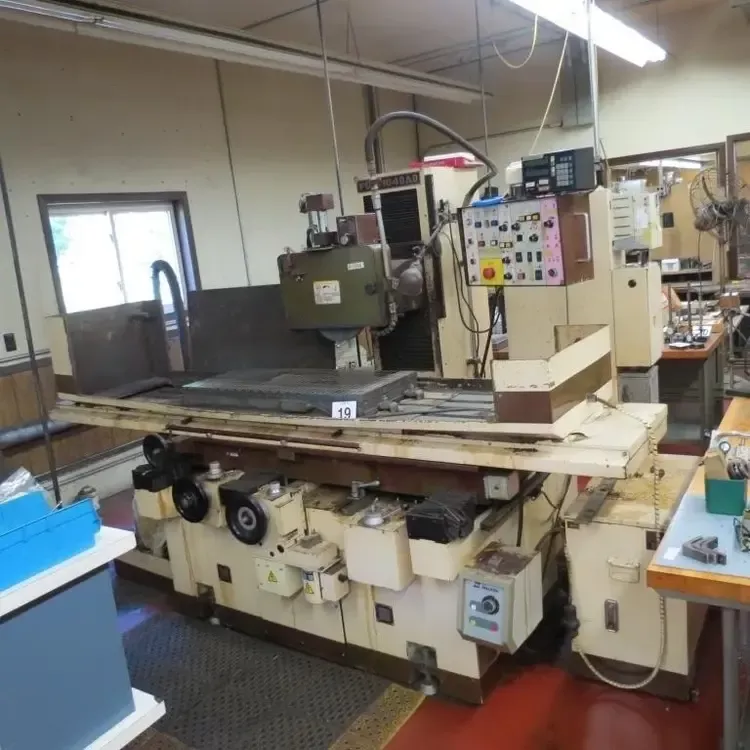

Chevalier FSG-1640AD

Table width 15.75"
Table length 39.375"
Power 10 hp
Grinding wheel width 2"
Grinding wheel diameter 14"
Dimensions 118 × 77 × 84 in
Weight 8400 lb
Table clamping surface 15.75" × 39"
Grinding width capacity 16"
Grinding length capacity 40"
Height table to spindle center 24.375"
Table longitudinal power travel 41.31"
Table longitudinal manual travel 43.25"
Cross travel automatic 16"
Cross travel manual 18"
Grinding wheel hole diameter 5"
Table longitudinal feed range 16–82 fpm
Automatic transverse increments range .125"–2"
Automatic vertical infeed range .00005"–.002"
Floor space required 158" × 68"
Overall height 76"
Weight approximately 8000 lb

16" × 40" Walker electro-magnetic chuck with controls
Sony 2-axis digital readouts
Surface and plunge grinding capabilities
Incremental power down feed
Overhead wheel dresser
Box-type linear guideway roller system
Coolant system with paper filter
