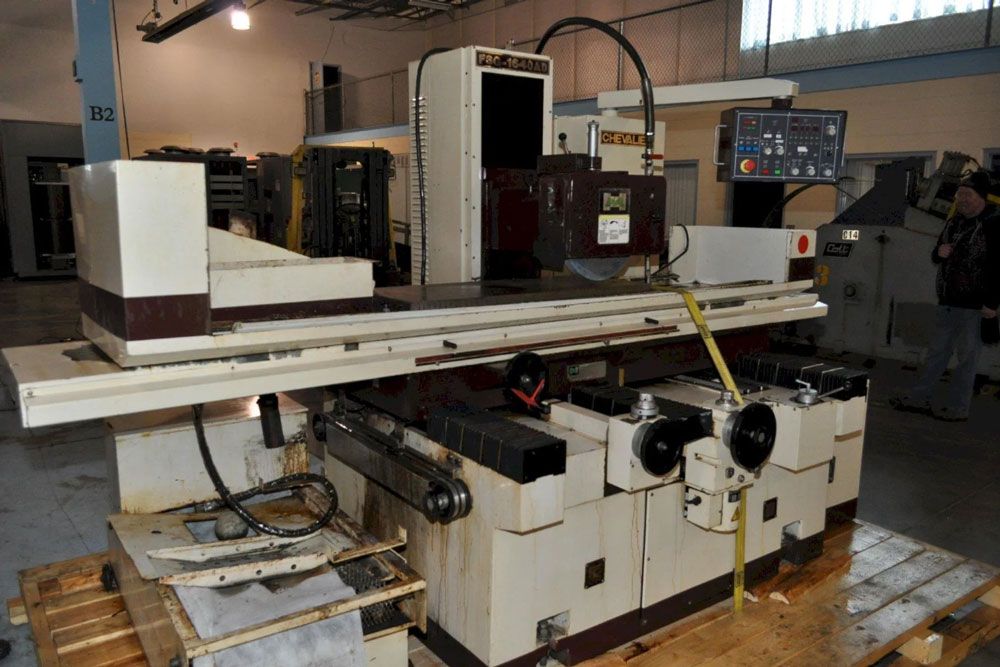

Chevalier FSG-1640AD

Table working surface: 16" × 40"
Magnetic chuck: 15-3/4" × 39-3/8"
Max. height table to spindle: 18-3/8"
Longitudinal table travel: 41-5/16"
Cross table travel: 16"
Table speed: 16–82 FPM (variable)
Spindle speed: 3450 RPM
Grinding wheel: 14" × 2" × 5"
Spindle motor: 5 HP
Hydraulic motor: 3 HP
Machine dimensions: 122" × 70" × 74"
Machine weight: Approx. 10,000 lbs
Electro-magnetic chuck
Magnetic chuck controls
Hydraulic table
Incremental downfeed
Wheel dresser
Automatic lubrication system
Coolant system
Paper filter
Power elevation
