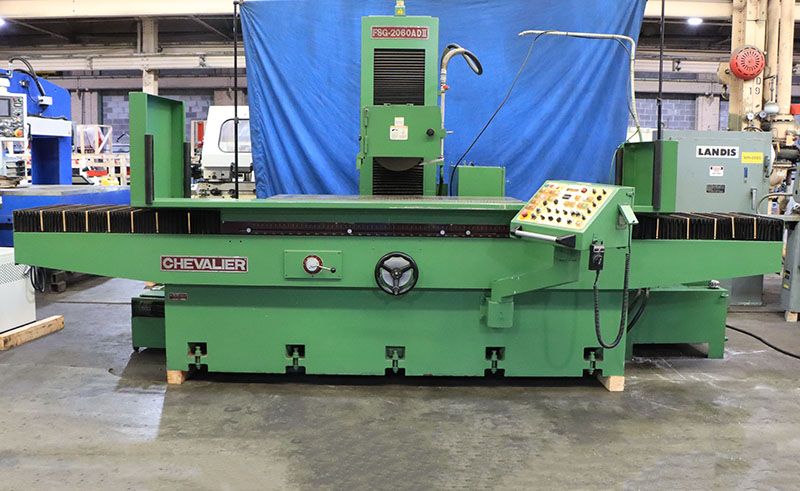

Chevalier FSG-2060ADII

Table Size: 19.7" x 59.4"
Maximum Table Load: 2579 lbs
Maximum Distance Table to Spindle Center: 28.63"
Longitudinal Table Speed: 16 - 82 ft/min
Maximum Table Travel: 63.25"
Maximum Cross Travel (Column): 22"
Auto Crossfeed Increments: 1/8" - 1 1/4"
Rapid Traverse Rate: 4.9 ft/min
Vertical Rapid Traverse: 15.7 in/min
Grinding Wheel Spindle Speed: 1740 rpm
Wheel Size: 14" x 2" x 5" bore
Spindle Motor Power: 10 hp
Electro-Magnetic Chuck: Kanetsu KET-50150K
Microprocessor Controlled Automatic Cycle Operation
3-Axis Automatic Surface Grinder
Hydraulic System
Coolant Tank with Paper Filtration
Lubrication Tank and Pump
Mitsubishi AC Servo Drive (Vertical and Cross Axis)
Approx. Machine Weight: 17600 lbs
Approx. Floor Space: 182" x 96" x 102"
