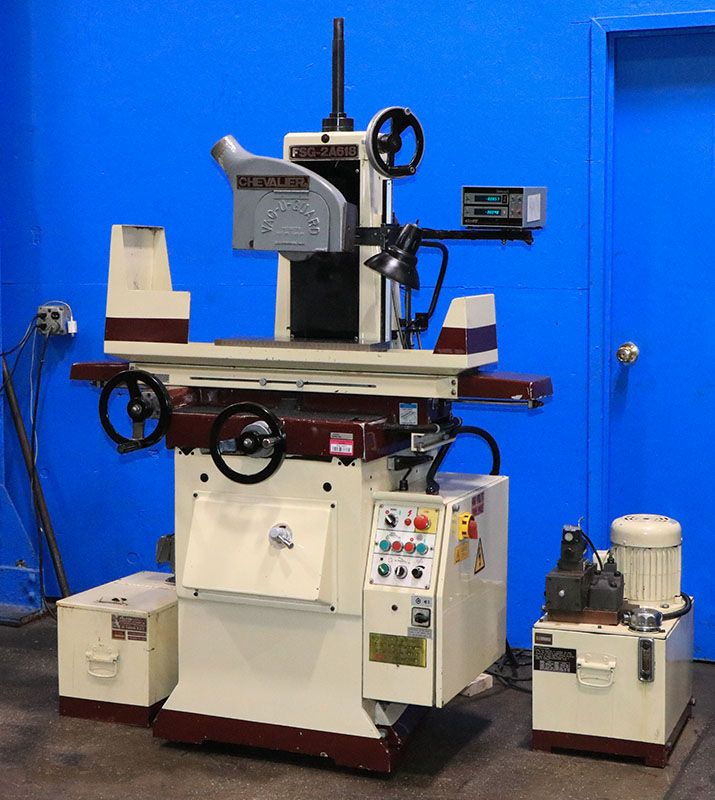

Chevalier FSG-2A618

Maximum surface ground: 6" x 18"
Distance from spindle center to table: 18"
Variable hydraulic table speed: 0 to 70 fpm
Maximum table travel: 19"
Automatic crossfeed increment: 0.006" to 0.375"
Wheel dress power truing: 0.63 to 3.3 fpm
Maximum crossfeed travel: 6-3/4"
Downfeed handwheel per graduation: 0.0001"
Downfeed per revolution: 0.05"
Crossfeed handwheel per graduation: 0.0005"
Crossfeed per revolution: 0.1"
Spindle motor: 1 hp
Standard grinding wheel size: 8" x 1/2" x 1-1/4"
Approximate weight: 2,000 lbs
Approximate dimensions: 52" L-R x 44" W x 76" H
Hydraulic pump motor: 2 hp, 3/60/220-440 volts
Spindle motor power supply: 1 hp, 3/60/220-440 volts

Features / Equipment
Hydraulic longitudinal feed
Automatic power crossfeed
Steel precision ball table movement
Automatic lubrication system
Acu-Rite Qwikcount 2-axis digital readout
Vac-U-Guard wheel cover with dust inlet
6" x 18" O.S. Walker Ceramax fine-division permanent magnetic chuck
Coolant system
Work light
Wired for 3/60/460 volts
Original paint
